Front Outer Parking Aid Sensor (G1817329): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

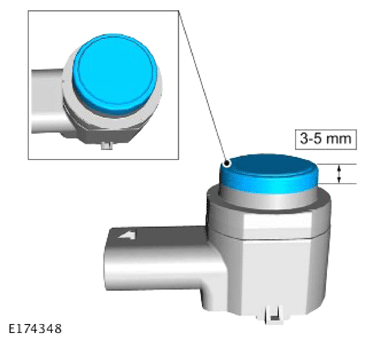

CAUTION: If a new sensor is installed, make sure that the area illustrated is the only area painted. Failure to follow this instruction may result in the component malfunctioning.

NOTE: On vehicles that are equipped with black or unpainted bumpers, the sensor(s) do not require painting.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
To install, reverse the removal procedure.
