Front Inner Parking Aid Sensor (G1817328): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Right illustration shown, Left is similar
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: FRONT BUMPER - PROJECT 8

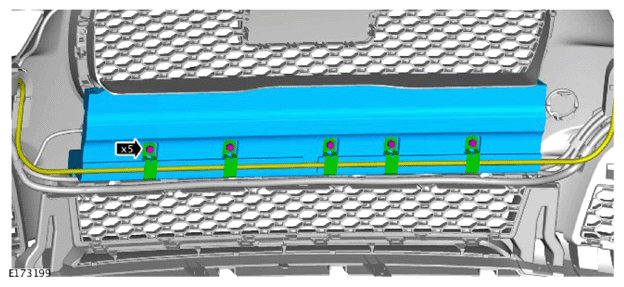

  3. G14008567Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

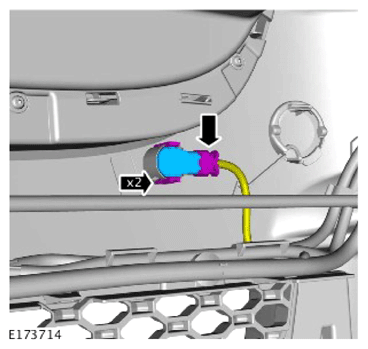

  4. G14008568Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
