Parking Exit

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

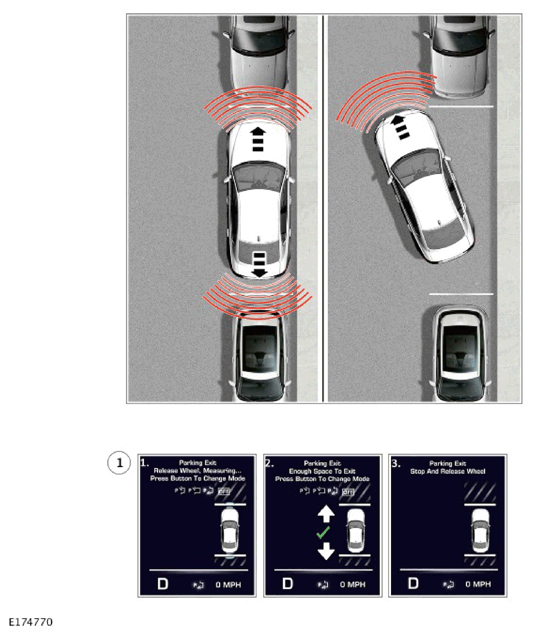

ITEM	DESCRIPTION
1	Parking exit sequence

When parking exit is selected, the park assist sensors search the area for a space that is big enough to maneuver out off.

When a space big enough has been identified, the park assist sensors inform the PACM so that the PACM control calculate the parking exit trajectory. The PACM then sends a HS CAN chassis systems bus message via the BCM/GWM assembly to the IC. A message will then be displayed in the message center and a audio warning from the speakers will inform the driver of this.

The PACM will then inform the IC to instruct the driver to select Reverse (R) gear. Once driver has followed these instructions, information is then sent to the Transmission Control Module (TCM) and PSCM and back to the PACM for perpendicular parking sequence to begin.

The driver will be then instructed to select Drive (D) gear and will continue to follow instructions that are displayed on the message center.

Once the procedure is finished, the PACM will inform the message center that parking out procedure is now complete. The driver will be informed by a message in the message center.
