Rear View Camera (RVC)

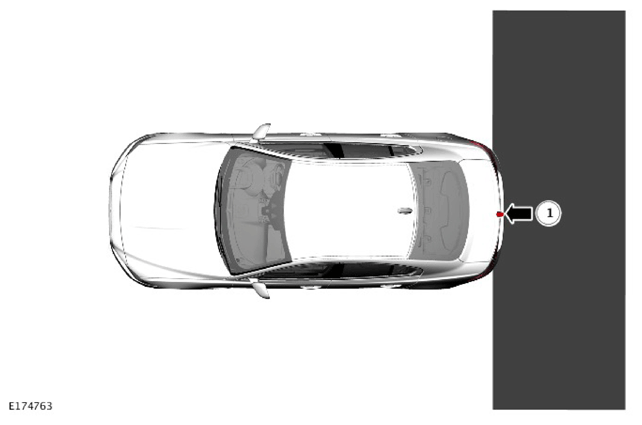

Rear View Camera (RVC) Coverage Zone
| ITEM | DESCRIPTION |
|---|---|
| 1 | Rear View Camera (RVC) |

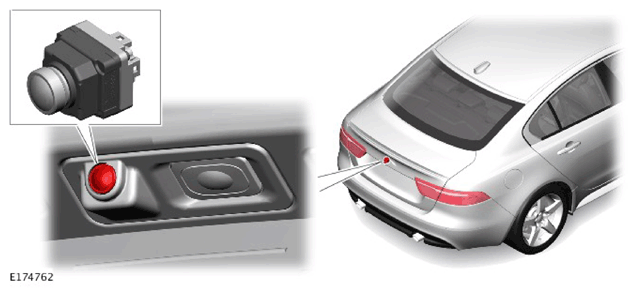

The Rear View Camera (RVC) is located in the tailgate. The RVC is a Video Graphics Array (VGA) resolution analogue camera that provides an image covering a zone approximately 130° wide by 112° deep and is capable of capturing approximately thirty frames per second. An electrical connector on the camera provides power, ground, High Speed (HS) Controller Area Network (CAN) comfort systems bus and Composite Video Baseband Signal (CVBS) or Low-Voltage Differential signalling (LVDS) connections depending on infotainment specification.
If the vehicle is equipped with the following system, a CVBS connection is used for video image transmission between the camera and the Audio Head Unit (AHU):
- InControl™ Touch infotainment system.
If the vehicle is equipped with the following system, a Low-Voltage Differential signalling (LVDS) connection to the Camera Control Module (CCM):
- In Control™ Touch Pro infotainment systems.
The camera provides additional information to the driver when reversing the vehicle. When reverse gear is selected the camera automatically displays a wide-angle color image of the view from the rear of the vehicle on the TS.
The positioning accuracy of the camera is crucial for successful operation, therefore care must be taken when installing a cameras to ensure it sits correctly in the bracket. In the event of camera replacement, a calibration routine must be performed.
