Proximity Camera Switch
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

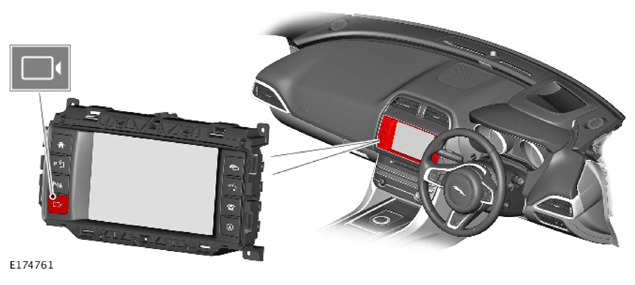

The proximity camera switch is located in the left Touch Screen (TS) switchpack.
The proximity camera switch is a non-latching push switch.
Once pressed the proximity camera switch will turn the system on and aerial views will be the first available option. Further presses of the switch will scroll the remaining options.
The sequence is as followed:
- Aerial view.
- T-Junction view.
- Rear view.
The Light Emitting Diode (LED) indicates when the park assist system is active. The LED is controlled by the PACM.
