Proximity Camera System
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

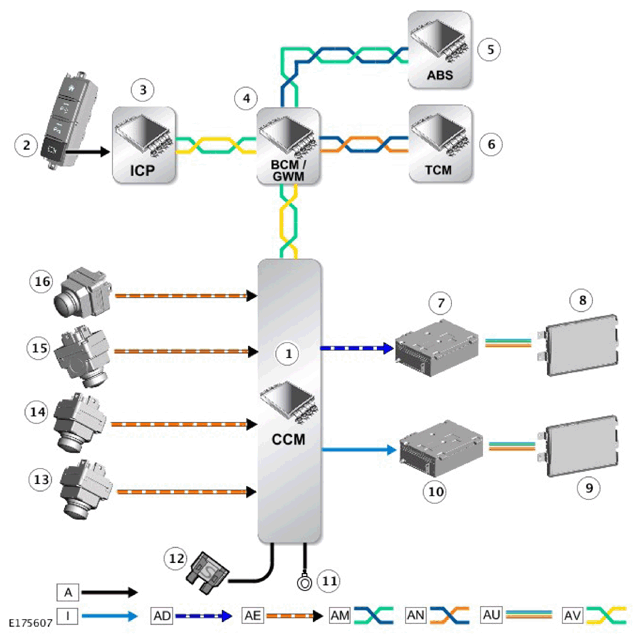

Vehicles equipped with InControl™ Touch Infotainment System.
A = HARDWIRED; I = COMPOSITE VIDEO BASEBAND SIGNAL (CVBS); AD = NATIONAL TELEVISION SYSTEM COMMITTEE (NTSC) SIGNAL; AE = LOW-VOLTAGE DIFFERENTIAL SIGNALING (LVDS); AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS; AN = HS CAN POWERTRAIN SYSTEMS BUS; AU = AUTOMOTIVE PIXEL LINK 2 (APIX2); AV = HS CAN COMFORT SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Camera Control Module (CCM) |
| 2 | Proximity camera switch |
| 3 | Touch Screen (TS) |
| 4 | Anti-lock Braking System (ABS) control module |
| 5 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 6 | Transmission Control Module (TCM) |
| 7 | Audio Head Unit (AHU) |
| 8 | Touch Screen (TS) |
| 9 | Touch Screen (TS) |
| 10 | Audio Head Unit (AHU) |
| 11 | Ground |
| 12 | Power supply |
| 13 | Front proximity camera |
| 14 | Left proximity camera |
| 15 | Right proximity camera |
| 16 | Rear proximity camera |
NOTE:

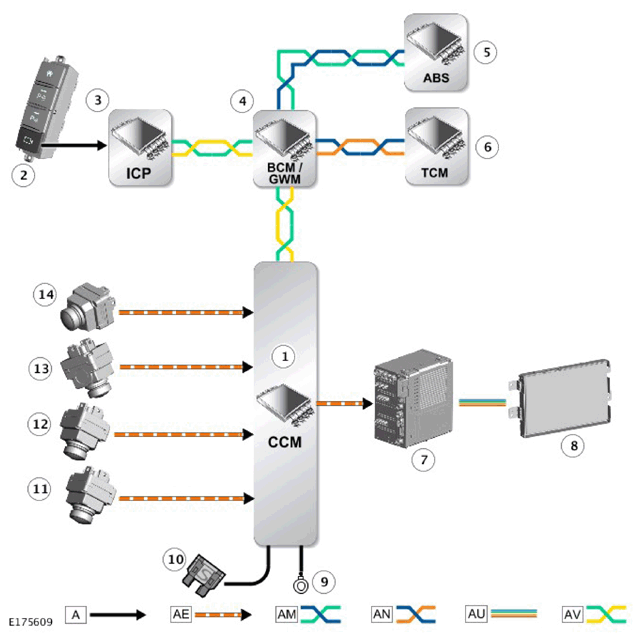

Vehicles equipped with InControl™ Touch Pro Infotainment System.
A = HARDWIRED; AE = LOW-VOLTAGE DIFFERENTIAL SIGNALING (LVDS); AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS; AN = HS CAN POWERTRAIN SYSTEMS BUS; AU = AUTOMOTIVE PIXEL LINK 2 (APIX2); AV = HS CAN COMFORT SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Camera Control Module (CCM) |
| 2 | Proximity camera switch |
| 3 | Integrated Control Panel (ICP) |
| 4 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 5 | Anti-lock Braking System (ABS) control module |
| 6 | Transmission Control Module (TCM) |
| 7 | Infotainment Master Controller (IMC) |
| 8 | Touch Screen (TS) |
| 9 | Ground |
| 10 | Power supply |
| 11 | Front proximity camera |
| 12 | Left proximity camera |
| 13 | Right proximity camera |
| 14 | Rear proximity camera |
