Rear View Camera (RVC) System

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

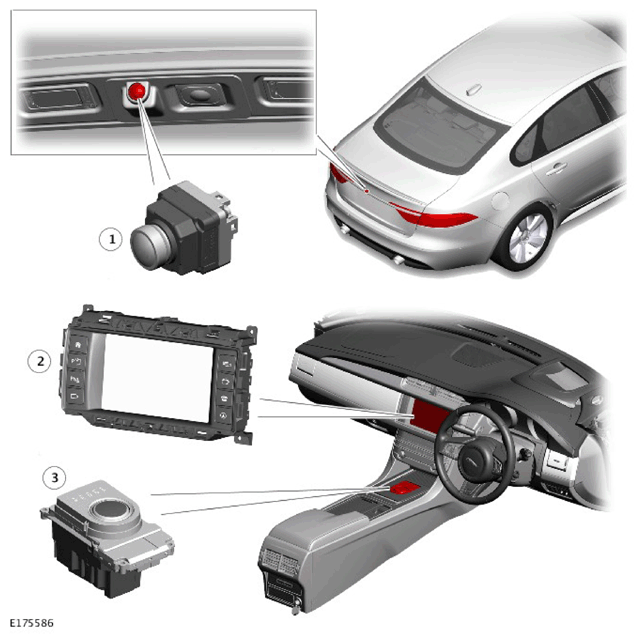

NOTE: Vehicles equipped with InControl™ Touch Infotainment System.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

ITEM	DESCRIPTION
1	Rear View Camera (RVC)
2	Touch Screen (TS)
3	Transmission Control Switch (TCS)

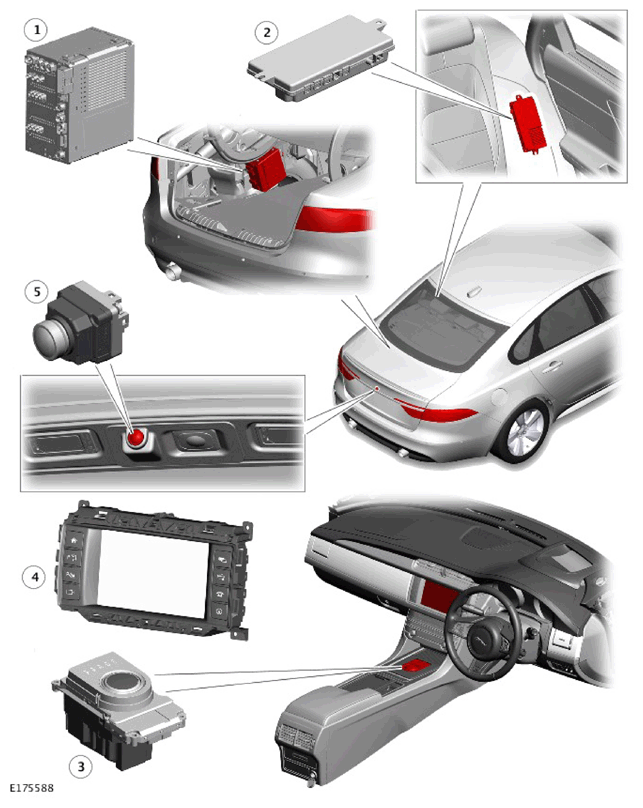

NOTE: Vehicles equipped with InControl™ Touch Pro Infotainment Systems.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

ITEM	DESCRIPTION
1	Infotainment Master Controller (IMC)
2	Camera Control Module (CCM)
3	Transmission Control Switch (TCS)
4	Touch Screen (TS)
5	Rear View Camera (RVC)
