Proximity Camera System
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

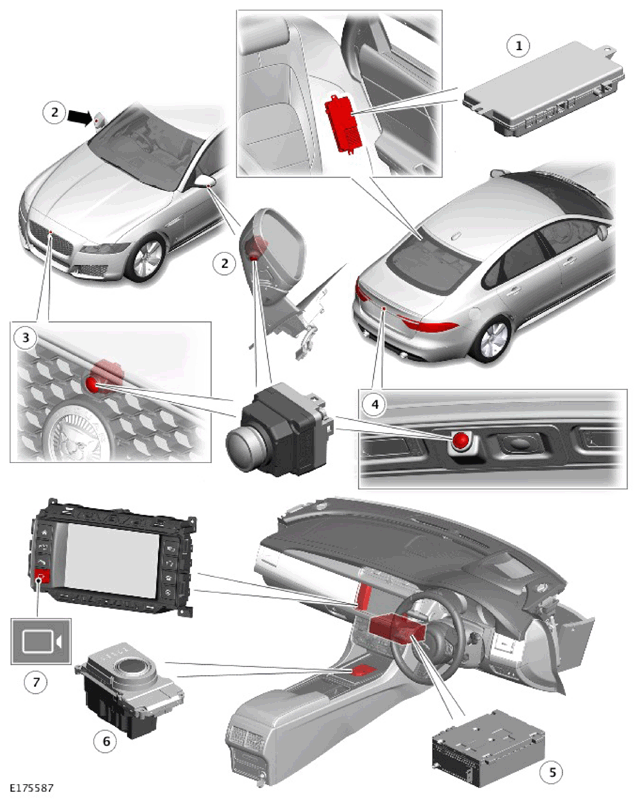

NOTE:
Vehicles equipped with InControl™ Touch Infotainment System.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Camera Control Module (CCM) |
| 2 | Left and right proximity camera |
| 3 | Front proximity camera |
| 4 | Rear proximity camera |
| 5 | Audio Head Unit (AHU) |
| 6 | Transmission Control Switch (TCS) |
| 7 | Proximity camera switch |

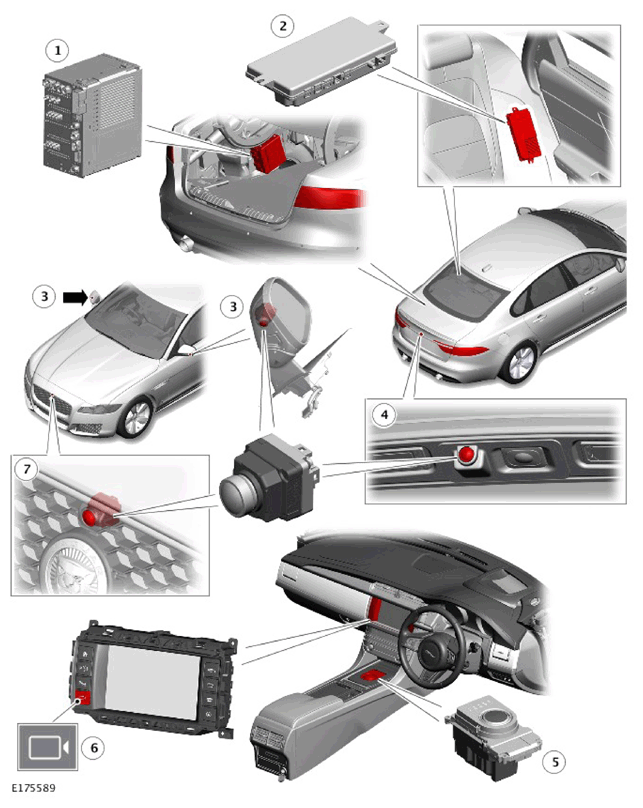

NOTE:
For Vehicles equipped with InControl™ Touch Pro Infotainment Systems.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Infotainment Master Controller (IMC) |
| 2 | Camera Control Module (CCM) |
| 3 | Left and right proximity cameras |
| 4 | Rear proximity camera |
| 5 | Transmission Control Switch (TCS) |
| 6 | Proximity camera switch |
| 7 | Front proximity camera |
