Reverse Traffic Detection (RTD)
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Touch Screen (TS) display is with systems using InControl™ Touch. InControl™ Touch Pro is similar.

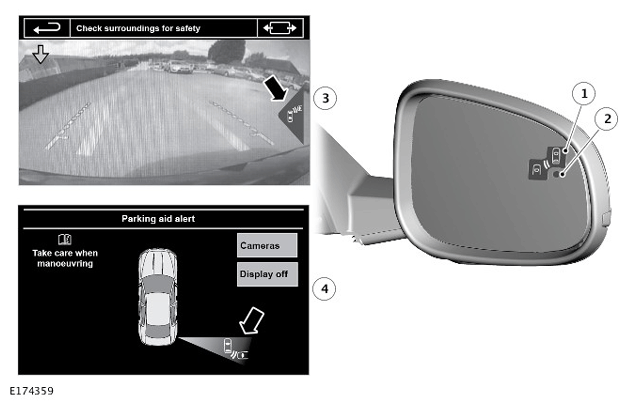

| ITEM | DESCRIPTION |
|---|---|
| 1 | Warning alert icon |
| 2 | System status warning indicator |
| 3 | Rear View Camera (RVC) screen |
| 4 | Parking aid screen |
The Rear View Camera (RVC) and parking aid screen will also show a warning on the relevant side or sides of which a vehicle is approaching on.
The Reverse Traffic Detection (RTD) system will automatically disable if any of the radars become partially or completely obscured. The amber warning indicator dot will illuminate in the exterior mirrors and the message 'Reverse Traffic Sensor Blocked' appears in the IC message center.
