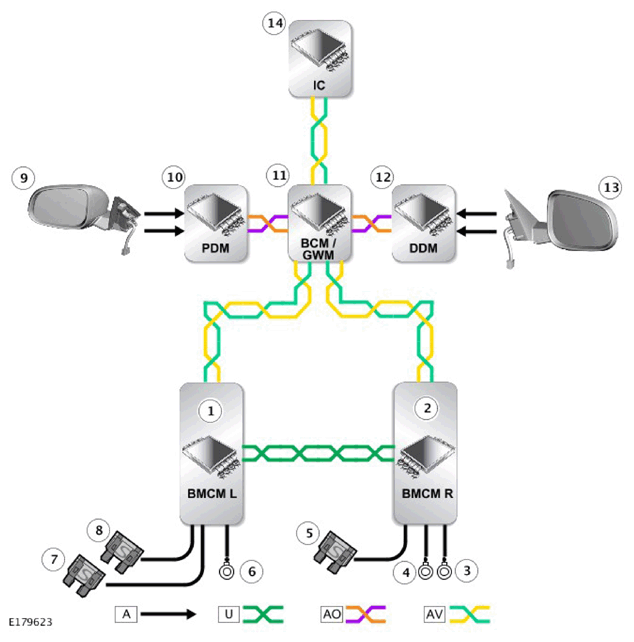

Control Diagram - BLINDSPOT Monitoring System
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED; U = PRIVATE CONTROLLER AREA NETWORK (CAN) BUS; AO = MEDIUM SPEED (MS) CONTROLLER AREA NETWORK (CAN) BODY SYSTEMS BUS; AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Blindspot Monitoring Control Module (BMCM) - Left |
| 2 | Blindspot Monitoring Control Module (BMCM) - Right |
| 3 | Ground |
| 4 | Ground |
| 5 | Power supply |
| 6 | Ground |
| 7 | Power supply |
| 8 | Power supply |
| 9 | Left side door mirror warning lamp |
| 10 | Passenger Door Module (PDM) |
| 11 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 12 | Driver Door Module (DDM) |
| 13 | Right side door warning lamp |
| 14 | Instrument Cluster (IC) |
