Component Location - Traffic Sign Recognition (TSR)
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Right Hand Drive (RHD) installation is shown, Left Hand Drive (LHD) installation is similar.

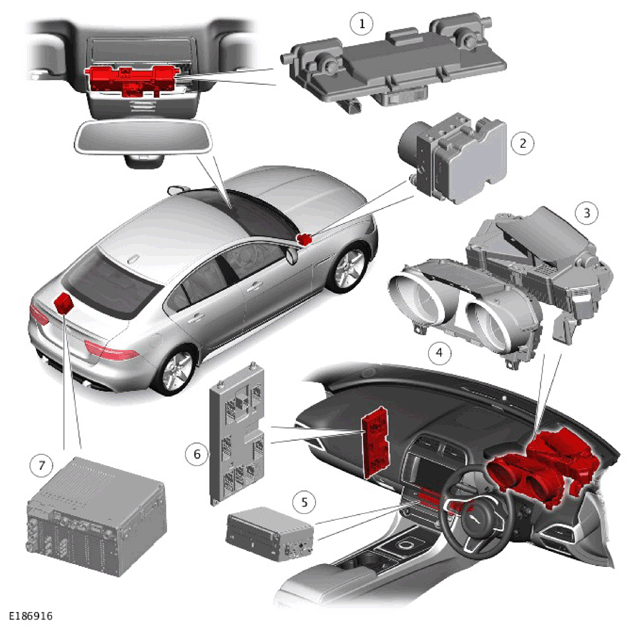

| ITEM | DESCRIPTION |
|---|---|
| 1 | Image Processing Module (IPMA) |
| 2 | Anti-lock Brake System (ABS) control module |
| 3 | Head Up Display Control Module (HUDCM) |
| 4 | Instrument Cluster (IC) |
| 5 | Audio Head Unit (AHU) (for vehicles with InControl™ Touch infotainment system) |
| 6 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 7 | Infotainment Master Controller (IMC) (for vehicles with InControl™ Touch Pro infotainment system) |
