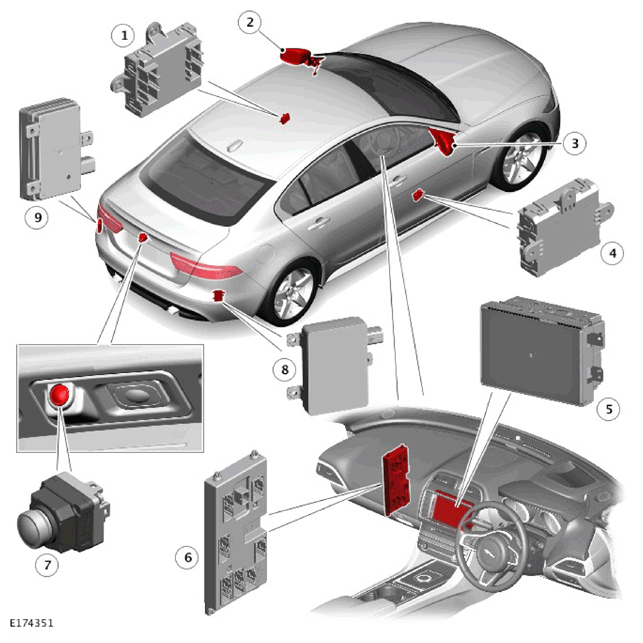

Component Location - Reverse Traffic Detection (RTD)
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Right Hand Drive (RHD) installation is shown, Left Hand Drive (LHD) installation is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Passenger Door Module (PDM) |
| 2 | Left side door mirror warning lamp |
| 3 | Right side door mirror warning lamp |
| 4 | Driver Door Module (DDM) |
| 5 | Touch Screen (TS) |
| 6 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 7 | Rear View Camera (RVC) |
| 8 | Blindspot Monitoring Control Module (BMCM) - Right |
| 9 | Blindspot Monitoring Control Module (BMCM) - Left |
