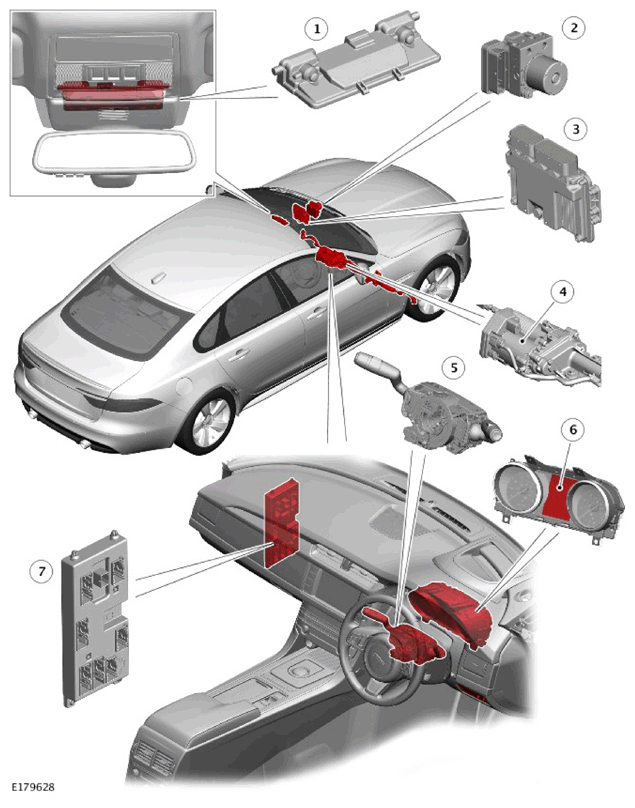

Component Location - Driver Drowsiness Detection (DDD)
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Right Hand Drive (RHD) installation is shown, Left Hand Drive (LHD) installation is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Image Processing Module (IPMA) |
| 2 | Anti-lock Brake System (ABS) control module |
| 3 | Powertrain Control Module (PCM) |
| 4 | Power Steering Control Module (PSCM) |
| 5 | Steering Angle Sensor Module (SASM) within the Clockspring (CLKSPG) |
| 6 | Instrument Cluster (IC) message center |
| 7 | Body Control Module/Gateway Module (BCM/GWM) assembly |
