Driveshaft To Rear Differential Disconnection (G2152273): Activation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Make sure all the components are clean and free from corrosion.
  • Support the driveshaft at all times to prevent the damage to the centre bearing.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. NOTE: If equipped.
    G11305760Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Locate and release the Emergency Park Release (EPR).

  2. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  3. NOTE: If equipped.

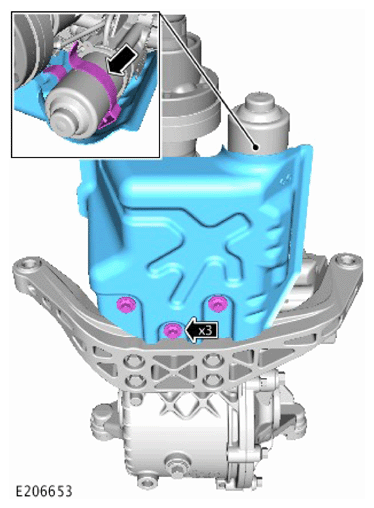

    G13878323Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the differential undershield.

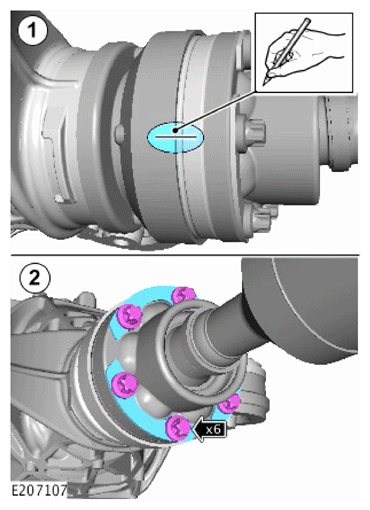

  4. G13878324Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Mark the installed position of the driveshaft in relation to the rear differential drive flange.
    2. Remove the driveshaft to rear differential retaining bolts and washers.
  5. Spray the joint mating faces and bolt holes with general purpose penetrating oil.
  6. NOTE: Vehicles with 2 slots located on the differential drive flange.

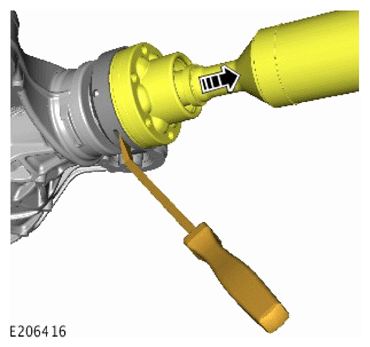

    G13878325Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using a suitable tool, carefully lever against the 2 slots located on the rear differential drive flange until the driveshaft is disconnected.

  7. NOTE: Vehicles with 2 slots located on the driveshaft.

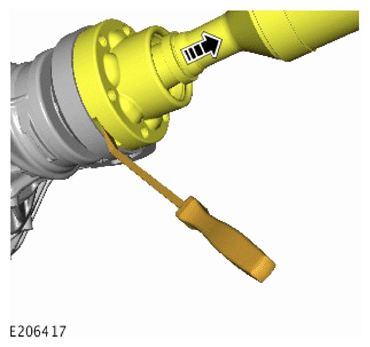

    G13878326Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using a suitable tool, carefully lever against the 2 slots located on the drive shaft joint until the driveshaft is disconnected.

  8. NOTE: Vehicles with 2 extra threaded holes on the differential drive flange.

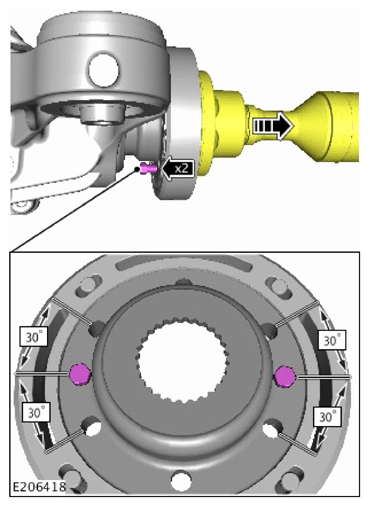

    G13878327Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install 2 M10 x 30 mm flangeless bolts into the 2 extra threaded holes located in the rear of the differential drive flange as shown.
    • Tighten the 2 bolts 1 turn at a time until the driveshaft is disconnected.
  9. NOTE: Vehicles with 2 extra unthreaded holes on the differential drive flange.

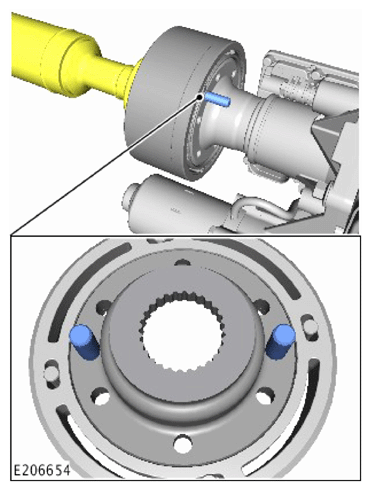

    G13878328Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install 2 suitable 8 mm x 30 mm metal bars into the extra 2 unthreaded holes located in the rear of the differential drive flange as shown.

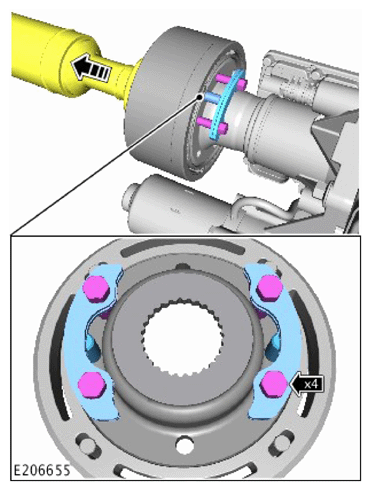

  10. G13878329Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install 4 M8 x 30 mm flangeless bolts and 4 driveshaft washers into the rear of the differential drive flange as shown.
    • Tighten the 4 bolts 1 turn at a time until the driveshaft is disconnected.
  11. WARNING: Make sure that the special tool is installed and used correctly. This will help prevent serious injury and damage to the vehicle and equipment.
    NOTE: Vehicles with accessible groove around the driveshaft.

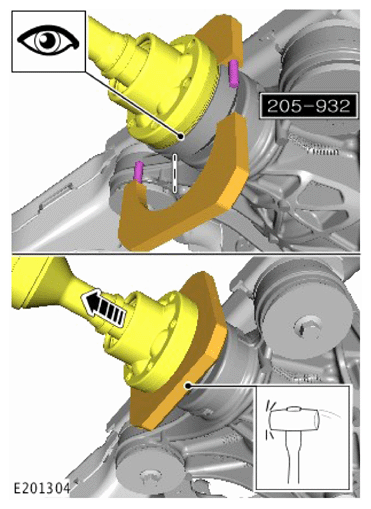

    G13878330Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using the special tool, disconnect the driveshaft.

    Special Tool(s): 205-932

  12. NOTE: Vehicles with tapered nut connection.

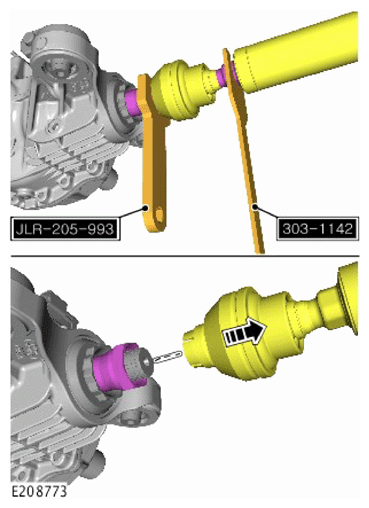

    G13878331Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using the special tools, disconnect the driveshaft.

    Special Tool(s): JLR-205-993  , 303-1142

  13. NOTE: Vehicles with tapered nut and clamp connection.

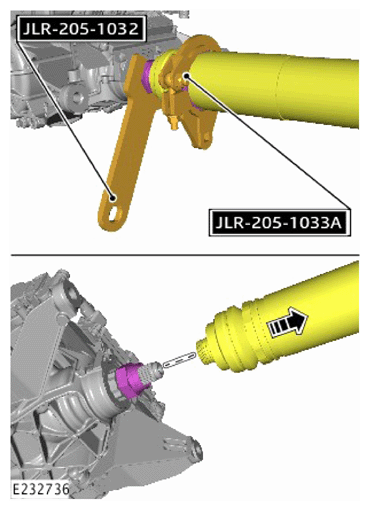

    G13878332Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using the special tools, disconnect the driveshaft.

    Special Tool(s): JLR-205-1032  , JLR-205-1033A

  14. Clean and inspect the components.
