Starting System - V8 S/C 5.0L Petrol, Project 8 (G2261900): Specifications
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATION
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |

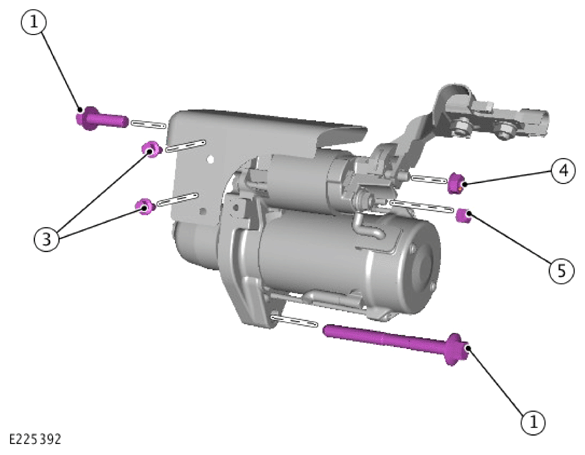

| 1 |
Starter motor retaining bolts |
48 |
35.4 |
- |

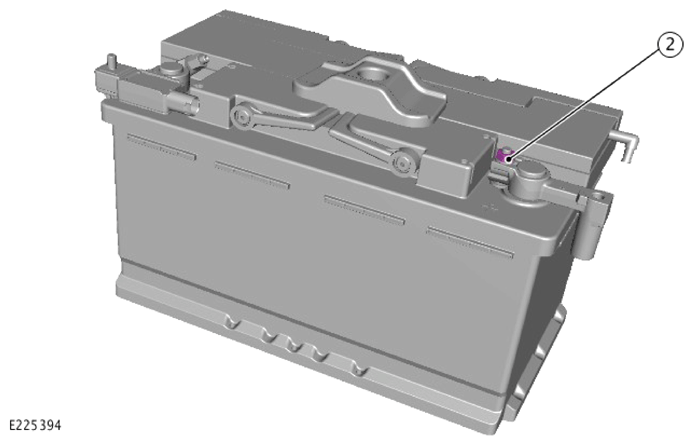

| 2 |
Battery positive terminal connector retaining nuts |
6 |
4.4 |
- |
| 3 |
Heat shield retaining bolts |
10 |
7.3 |
- |
| 4 |
Solenoid terminal connector retaining nut |
9 |
6.6 |
- |
| 5 |
Starter motor signal wire |
6 |
4.4 |
- |
