Starter Motor (G2244124): Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure the starter motor is fully supported at this stage. Do not allow the starter motor to hang from the wiring harness.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

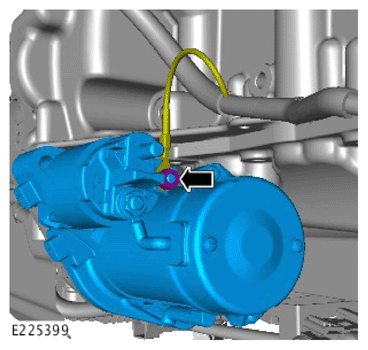

- Install the cable to the starter motor.
- Install and tighten the nut.
  Torque : 6Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

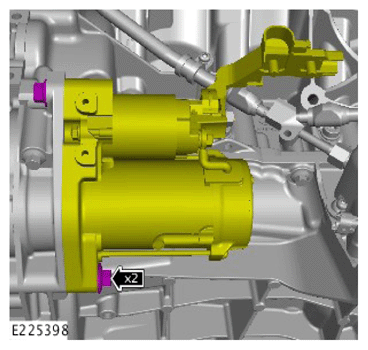

- Install the starter motor and the 2 bolts.
- Tighten the 2 bolts.
  Torque : 48Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

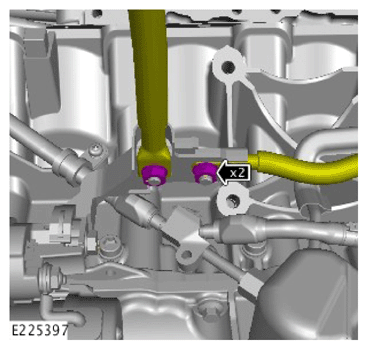

- Install the 2 cables.
- Install and tighten the 2 nuts.
  Torque : 9Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

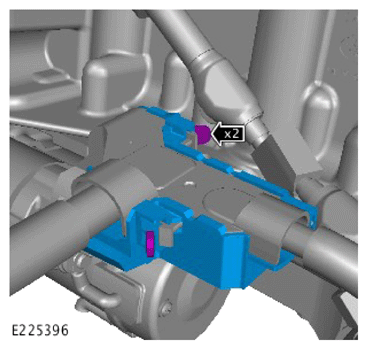

Install the cover and secure the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

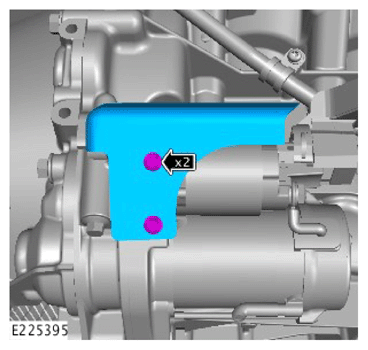

- Install the heatshield and the 2 bolts.
- Tighten the 2 bolts.
  Torque : 6Nm
Install the right side catalytic converter.
Refer to: RIGHT CATALYTIC CONVERTER
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
