Ignition Switch

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

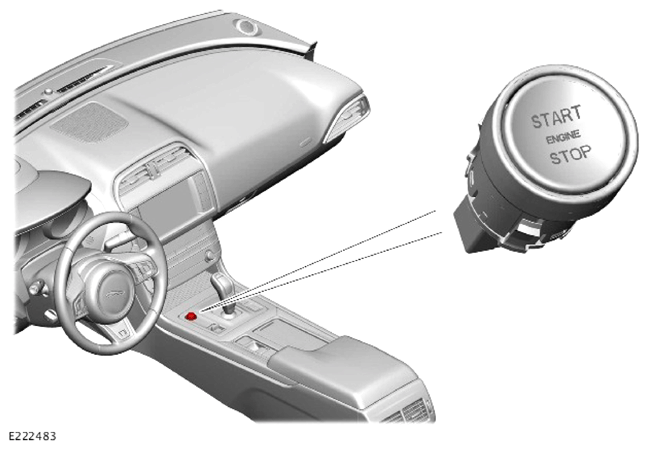

G14004395Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The ignition switch is installed in the instrument panel and is hardwired to the Body Control Module/Gateway Module (BCM/GWM). When the switch is pressed two signal lines from the BCM/GWM are connected to ground.
