Component Location - 2 Of 2

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

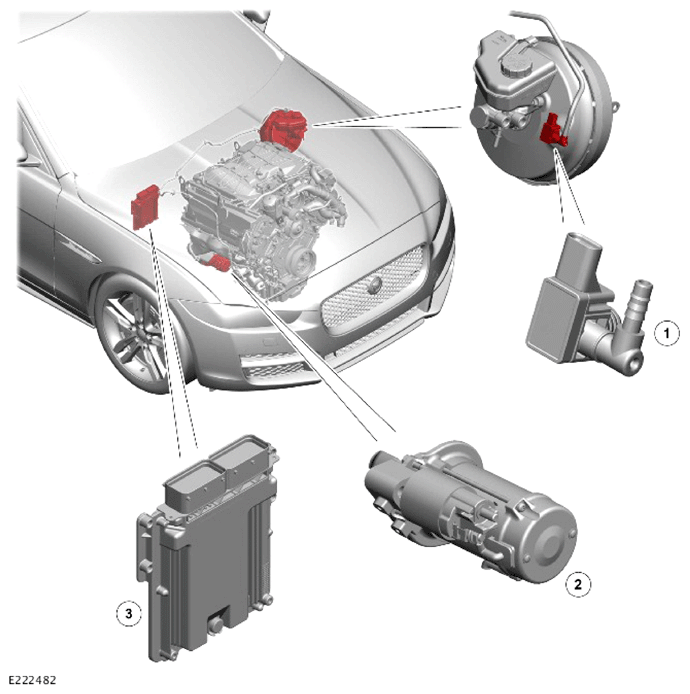

G14004394Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Brake vacuum sensor
2 Starter motor
3 Powertrain Control Module (PCM)
