Ignition Switch

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

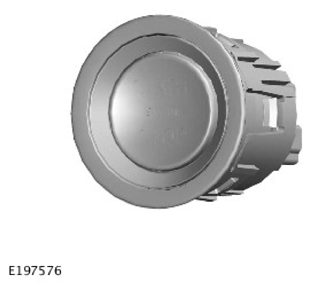

G11308042Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The ignition switch is installed in the instrument panel center carrier and is hardwired to the Body Control Module/Gateway Module (BCM/GWM) assembly. When the ignition switch is operated two signal wires from the BCM/GWM assembly are connected to ground.
