Auto Stop/Start Switch - If Equipped
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.

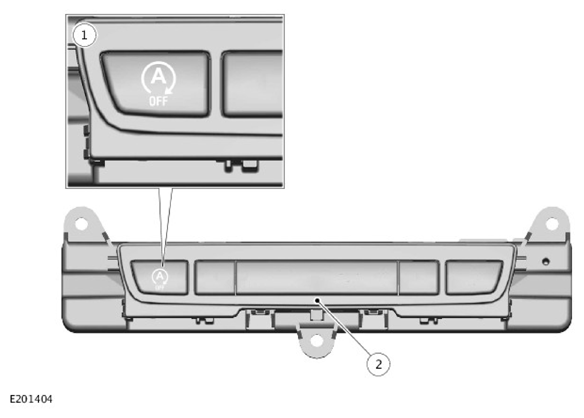

| ITEM | DESCRIPTION |
|---|---|
| 1 | Auto stop/start switch |
| 2 | JaguarDrive Switchpack (JDS) |
The auto stop/start switch is located in the Jaguar Drive Switchpack (JDS). The JDS is installed to the instrument panel center carrier. Selection of the auto stop/start switch is transmitted from the JDS to the Body Control Module/Gateway Module (BCM/GWM) assembly via the High Speed (HS) Controller Area Network (CAN) chassis systems bus.
