Control Diagram 1 Of 2 - Vehicles Without Auto Stop/Start System
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: AZ = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) BODY SYSTEMS BUS: AX = FLEXRAY.

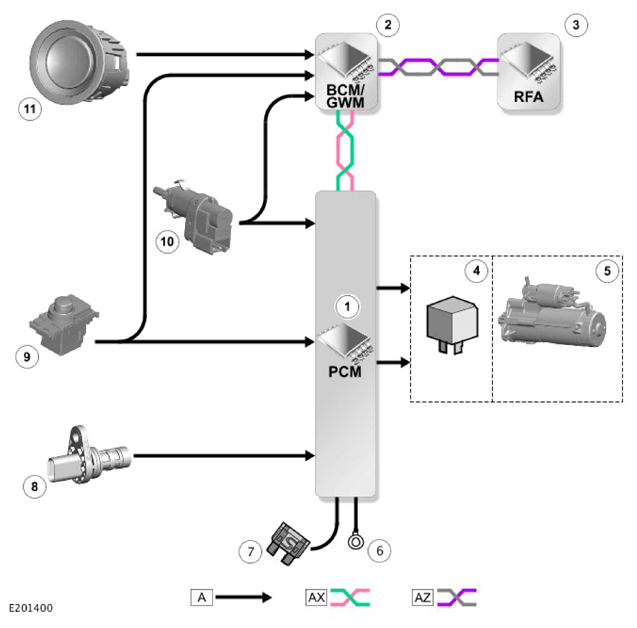

| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 3 | Remote Function Actuator (RFA) |
| 4 | Starter relay - Engine Junction Box 2 (EJB 2) |
| 5 | Starter motor |
| 6 | Ground |
| 7 | Power supply |
| 8 | Crankshaft Position Sensor (CKP) |
| 9 | Park/neutral signal - Transmission Control Switch (TCS) |
| 10 | Brake pedal switch |
| 11 | Ignition switch |
