Starter Motor (G1821366): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle using a suitable 2 post lift.
Refer to: LIFTING
Remove the undershield.
Refer to: ENGINE UNDERSHIELD
Remove the right catalytic converter.
Refer to: RIGHT CATALYTIC CONVERTER - RWD .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

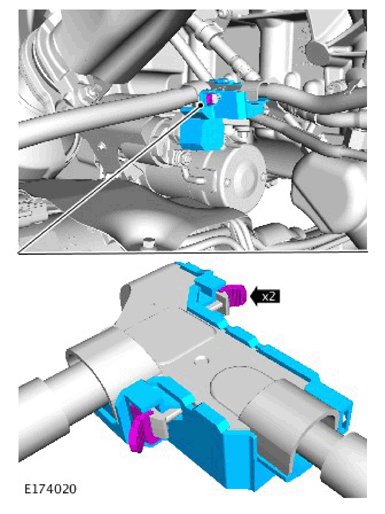

Release clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

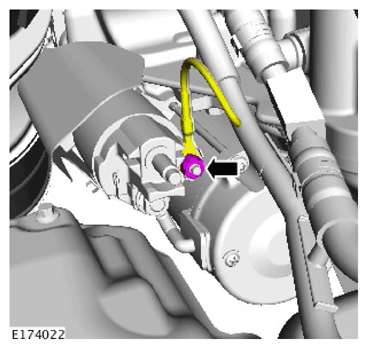

Disconnect the electrical connector from the starter motor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

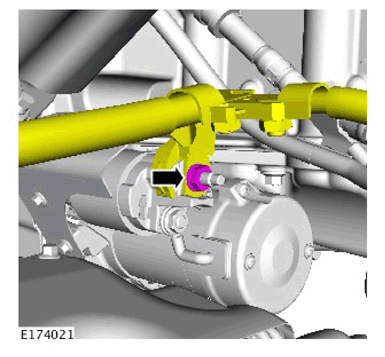

Disconnect the electrical connector from the starter motor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

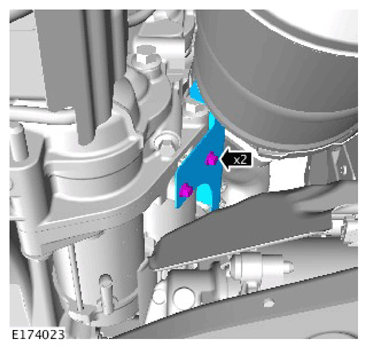

Remove the 2 bolts and the heatshield.

Torque : 6Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

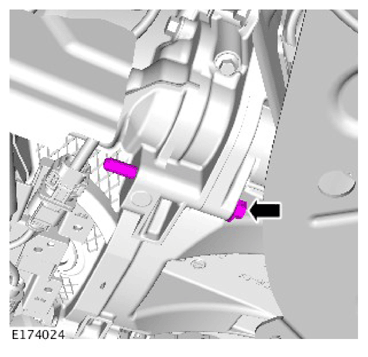

Remove the lower starter motor bolt.
NOTE: The upper bolt will remain captive.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

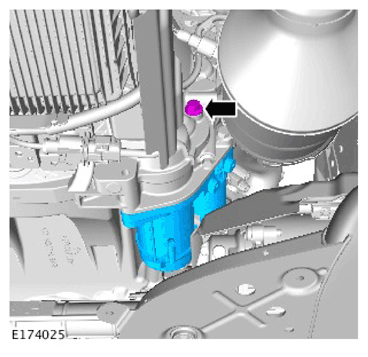

Remove the upper bolt and remove the starter motor.
