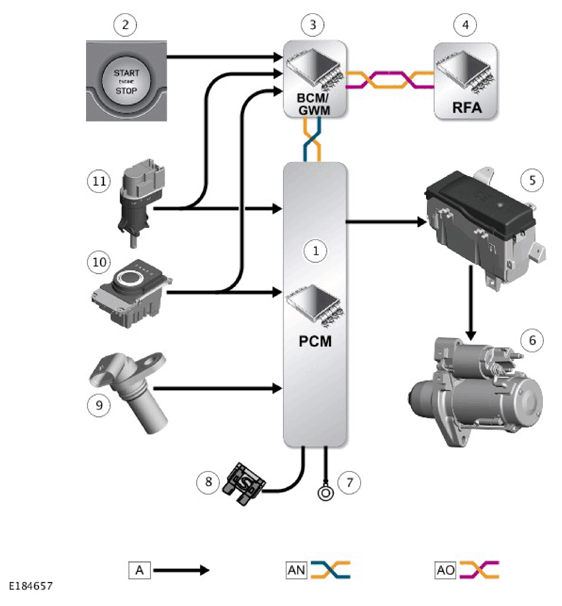

Input/Output Diagram - Sheet 1 Of 2 - Starting System Without Auto Stop/Start
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED; AO = MEDIUM SPEED (MS) CONTROLLER AREA NETWORK (CAN) BODY SYSTEMS BUS; AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Stop/start switch |
| 3 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 4 | Remote Function Actuator (RFA) |
| 5 | Engine Junction Box 2 (EJB 2) |
| 6 | Starter motor |
| 7 | Ground |
| 8 | Power supply |
| 9 | Crankshaft Position (CKP) sensor |
| 10 | Transmission Control Switch (TCS) - park/neutral signal |
| 11 | Brake pedal switch |
