Starter Motor (G1796167): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.
Some components shown removed for clarity.

The following step(s) applies to:

All vehicles

Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: ENGINE UNDERSHIELD

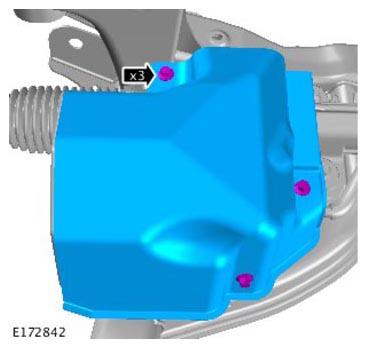

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 10Nm

The following step(s) applies to:

Vehicles with manual transmission

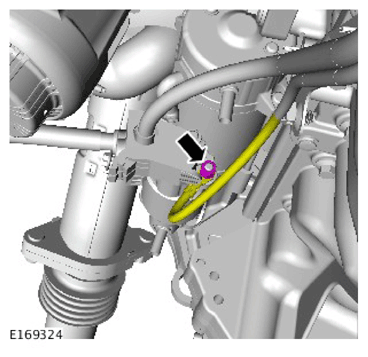

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 7Nm

The following step(s) applies to:

Vehicles with automatic transmission

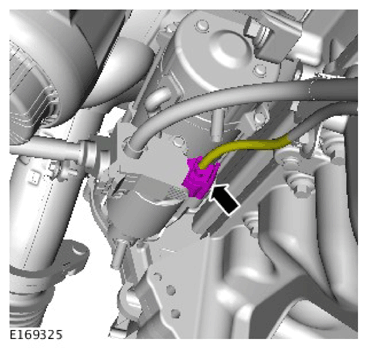

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The following step(s) applies to:

All vehicles

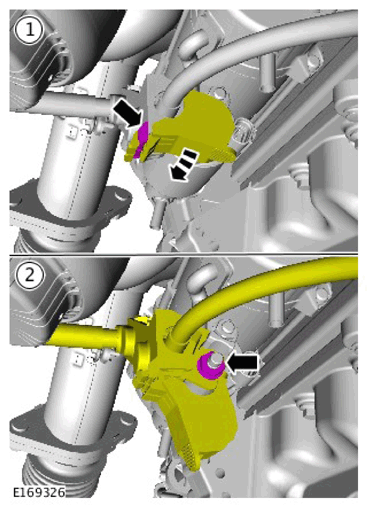

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 12Nm

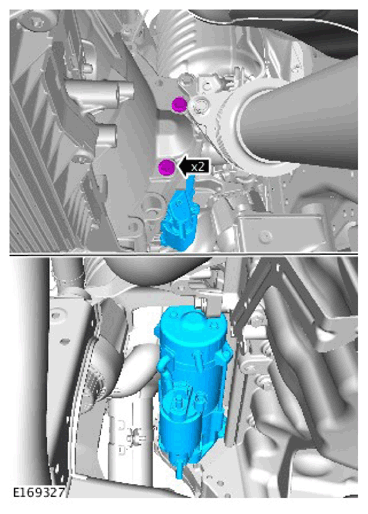

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 48Nm
