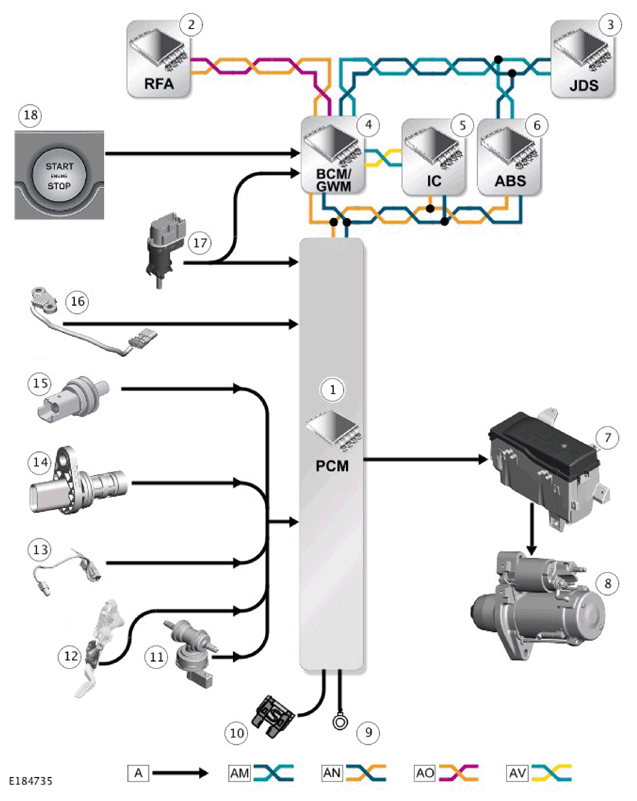

Input/Output Diagram - Sheet 2 Of 3 - Starting System With Auto Stop/Start - Manual Transmission
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED; AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS; AN = HS CAN POWERTRAIN SYSTEMS BUS; AO = MEDIUM SPEED (MS) CAN BODY SYSTEMS BUS; AV = HS CAN COMFORT SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Remote Function Actuator (RFA) |
| 3 | JaguarDrive Switchpack (JDS) |
| 4 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 5 | Instrument Cluster (IC) |
| 6 | Anti-lock Brake System (ABS) control module |
| 7 | Engine Junction Box 2 (EJB 2) |
| 8 | Starter motor |
| 9 | Ground |
| 10 | Power supply |
| 11 | Brake vacuum switch |
| 12 | Accelerator Pedal Position (APP) sensor |
| 13 | Ambient Air Temperature (AAT) sensor |
| 14 | Crankshaft Position (CKP) sensor |
| 15 | Ambient Air Temperature (AAT) sensor |
| 16 | Neutral gear sensor |
| 17 | Brake pedal switch |
| 18 | Stop/start switch |
