Stop/Start Switch

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

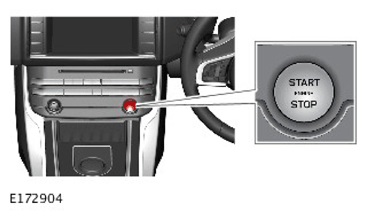

G11308012Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The stop/start switch is installed in the Integrated Control Panel (ICP) and is hardwired to the Body Control Module/Gateway Module (BCM/GWM) assembly. When the switch is pressed two signal lines from the BCM/GWM assembly are connected to ground.
