Component Location - Sheet 3 Of 3 - Starting System, Vehicles With Auto Stop/Start And Automatic Transmission

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

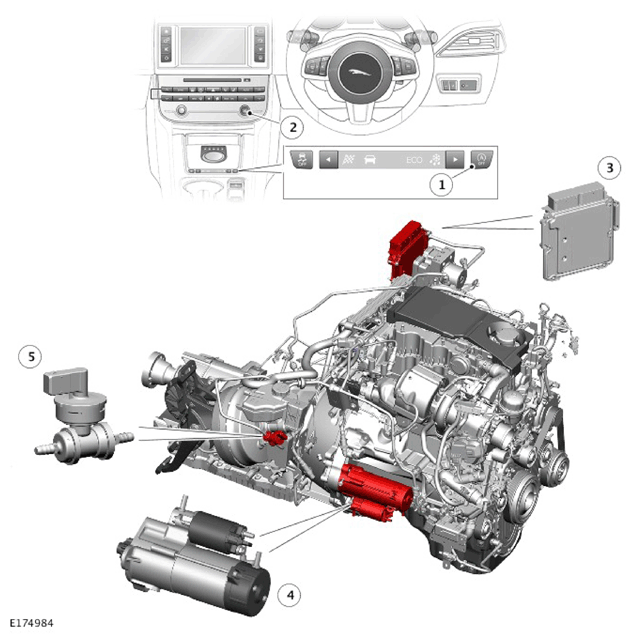

G11308010Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Auto stop/start switch
2 Stop/start switch
3 Powertrain Control Module (PCM)
4 Starter motor
5 Brake vacuum switch
