Component Location - Sheet 2 Of 3 - Starting System, Vehicles With Auto Stop/Start And Manual Transmission

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

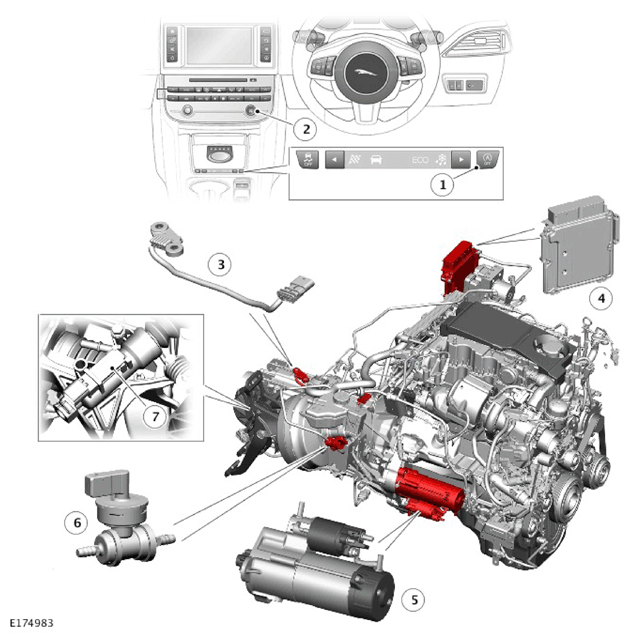

G11308009Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Auto stop/start switch
2 Stop/start switch
3 Neutral gear sensor
4 Powertrain Control Module (PCM)
5 Starter motor
6 Brake vacuum switch
7 Clutch pedal position sensor
