Section 225 (Starting System - INGENIUM I4 2.0L Diesel -- XE/(760))
>>
Starting System - INGENIUM I4 2.0L Diesel (G1796166)
>>
Description And Operation
>>
Starting System - INGENIUM I4 2.0L Diesel (G1895522)
>>

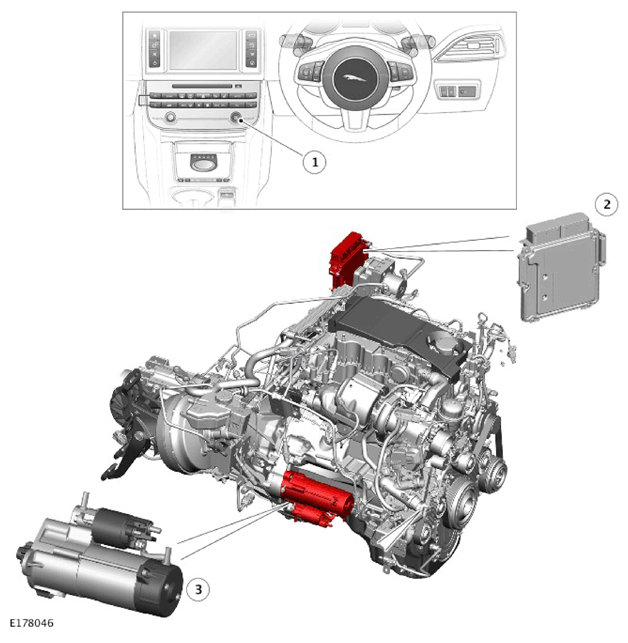

Component Location - Sheet 1 Of 3 - Starting System, Vehicles Without Auto Stop/Start
Component Location - Sheet 1 Of 3 - Starting System, Vehicles Without Auto Stop/Start
WARNING:
This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM
DESCRIPTION
1
Stop/start switch
2
Powertrain Control Module (PCM)
3
Starter motor
