Transfer Case Draining And Filling (G1908027): Filling

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Make sure that all the component mating faces are clean.

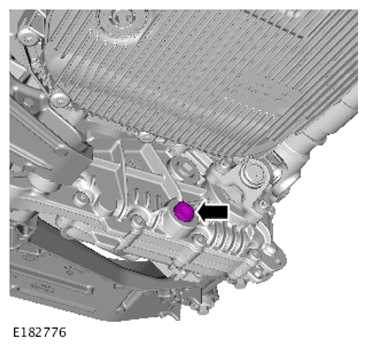

    G14007086Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the new drain plug.

    Renew Part: Transfer case drain plug Quantity  : 1.

    Torque  : 25Nm

  2. G11314255Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the drain plug.

    Torque  : 8Nm

  3. CAUTION: Make sure that the area around the component is clean and free of foreign material.
    NOTE: Do not discard the fill plug.
    G11314248Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the fill plug.

  4. Fill transfer case with the recommended fluid, until the fluid is level with bottom of filler/level plug hole.

    Refer to: SPECIFICATIONS

  5. NOTE: Make sure that all the component mating faces are clean.
    G11314248Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the fill plug.

    Torque  : 8Nm

  6. CAUTION: Make sure that the area around the component is clean and free of foreign material.
    G11314247Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove and discard the fill plug.

  7. Fill transfer case with the recommended fluid, until the fluid is level with bottom of filler/level plug hole.

    Refer to: SPECIFICATIONS

  8. CAUTION: Make sure that the area around the component is clean and free of foreign material.
    G11314247Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the new fill plug.

    Renew Part: Transfer case fill plug Quantity  : 1.

    Torque  : 25Nm

  9. G11314245Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the Noise, Vibration and Harshness damper bracket.
    • Install the 3 bolts.

      Torque  : 25Nm

  10. G11314251Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the NVH damper nuts.

      Torque  : 45Nm

    • Install the caps.
  11. Install the air deflector.

    Refer to: ENGINE UNDERSHIELD - PROJECT 8

    • Drive the vehicle for approximately 1 Km (0.6 miles).
    • Connect an approved battery support unit/power supply to the vehicle.
    • Connect the approved Land Rover diagnostic equipment.
    • Check for Transfer Case Control Module (TCCM) software updates.
    • Update TCCM software if required.
    • With the engine running perform a diagnostic service function.
    • Disconnect the approved diagnostic equipment.
    • Disconnect the approved battery support unit/power supply from the vehicle.
