Torque Converter (G2046534): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

The following step(s) applies to:

All vehicles

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using the special tools install the torque converter.

Special Tool(s): 307-613
NOTE: Make sure that the torque converter is fully engaged to the transmission.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

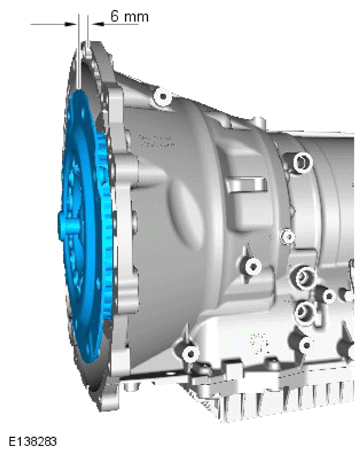

Install the torque converter to the specification illustrated.

The following step(s) applies to:

4WD vehicles
Install the transmission.
Refer to: TRANSMISSION - INGENIUM I4 2.0L PETROL

The following step(s) applies to:

2WD vehicles
Install the transmission.
Refer to: TRANSMISSION - INGENIUM I4 2.0L PETROL
