Transmission - V6 S/C 3.0L Petrol (G1817089): Installation: Part(S)

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
STEP PART NAME QUANTITY
Step 13 Torque converter bolts 4
Step 15 Driveshaft to rear differential bolts 6
Step 23 Transmission casing O-ring seals 2
WARNING: Be prepared to collect escaping fluids.
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  1. NOTE: If a new gearbox is being installed, install the transit plate to the original gearbox.

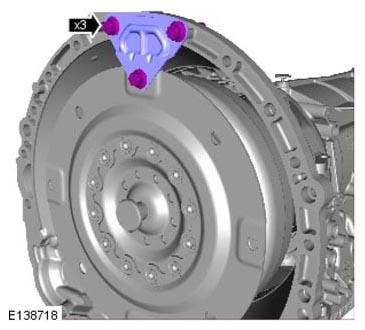

    G11292073Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 bolts.
    • Remove the transit plate.
  2. NOTE:
    • Make sure that the torque converter is fully engaged to the transmission.
    • Secure the torque converter to the transmission using suitable cable ties.
    G14005921Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Check the torque converter.

  3. NOTE: Only do steps 3 to 7 if previously removed.

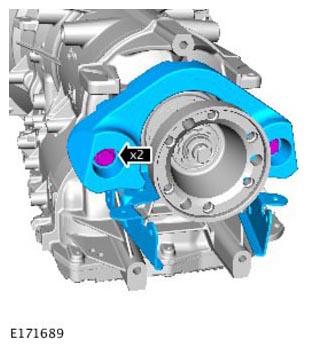

    G11313875Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the vibration damper.
    • Install and tighten the 2 bolts.

      Torque  : 48Nm

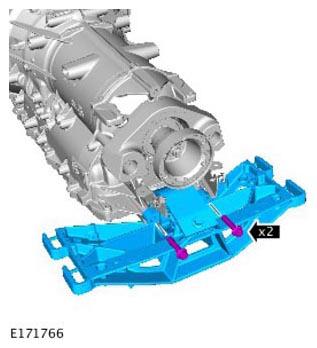

  4. G11313874Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the transmission mounting.
    • Install and tighten the 2 bolts.

      Torque  : 48Nm

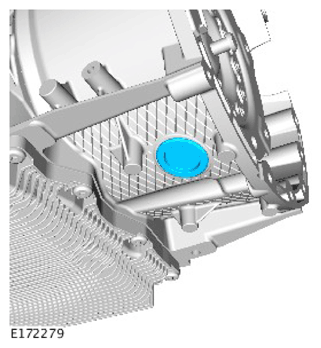

  5. G11298607Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the grommet.

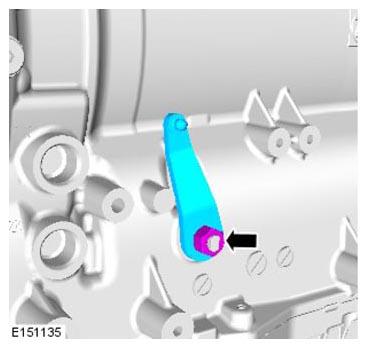

  6. G11292003Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the lever.
    • Install and tighten the nut.

      Torque  : 12Nm

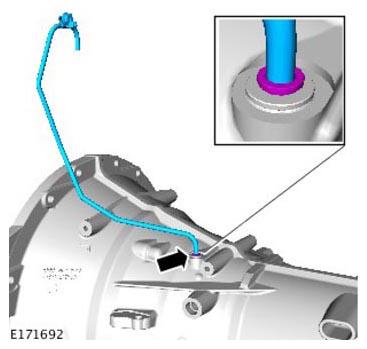

  7. CAUTION: To prevent water ingress and subsequent transmission damage, make sure that the breather is fully pushed home into the transmission casing. The white line around the circumference of the pipe should not be visible when correctly installed.
    G11313871Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the breather.

  8. WARNING:
    • This step requires the aid of another technician.
    • Make sure that the transmission is secured with suitable retaining straps.
    CAUTION:
    • Make sure that the torque converter remains in the transmission.
    • Apply grease of the correct specification to the torque converter spigot.
    NOTE: Remove and discard the cable ties securing the torque converter.

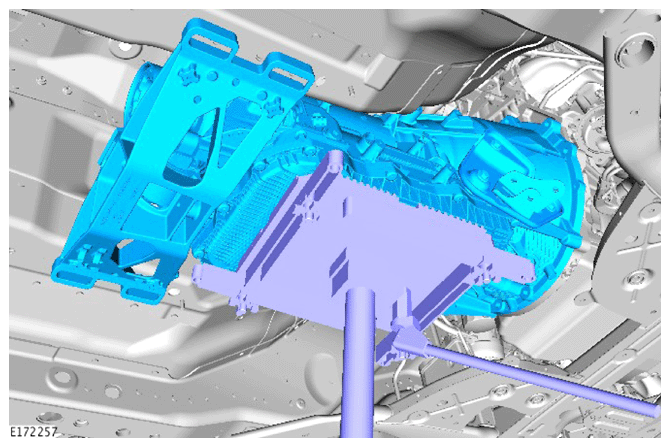

    G14006204Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Use a suitable transmission jack to install the transmission.

      General Equipment: Transmission jack

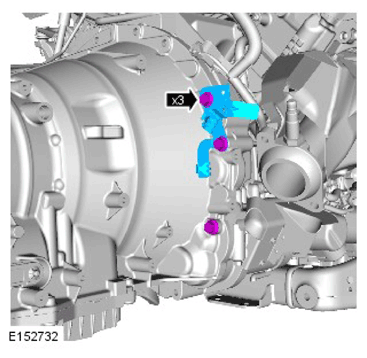

  9. G11298301Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the bracket.
    • Install and tighten the 3 bolts.

      Torque  : 48Nm

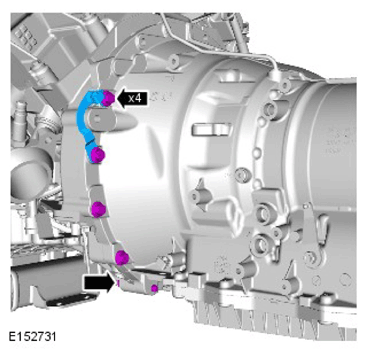

  10. G11298300Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the bracket.
    • Install and tighten the 4 bolts.

      Torque  : 48Nm

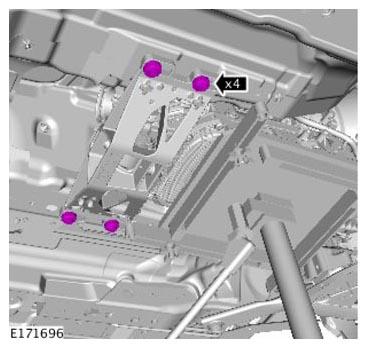

  11. G11313798Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the 4 bolts.

    Torque  : 45Nm

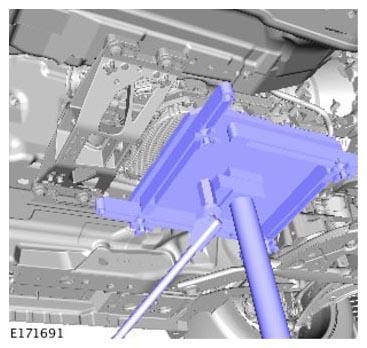

  12. G11313797Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the transmission jack.

    General Equipment: Transmission jack

  13. CAUTION: Only rotate the crankshaft clockwise.

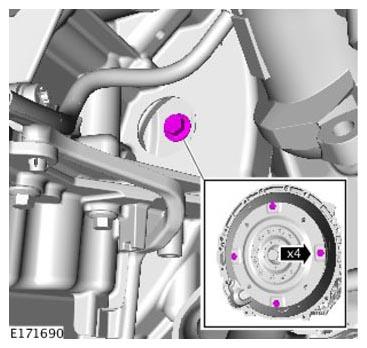

    G11313860Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten 4 new torque converter bolts.

    Renew Part: Torque converter bolts  Quantity: 4.

    Torque  : 63Nm

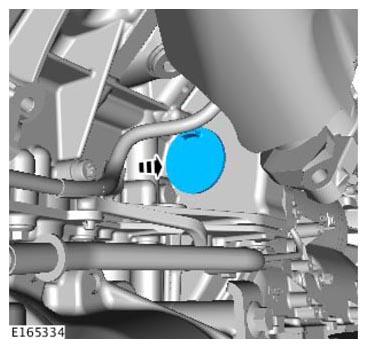

  14. G11313976Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the access cover.

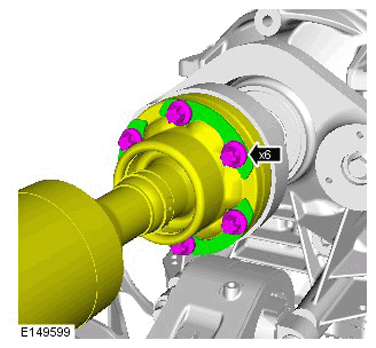

  15. NOTE: Make sure that you re-align the driveshaft to the transmission flange using the alignment mark.
    G11284065Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Reposition the driveshaft to the correct location.
    • Install and tighten 6 new bolts.

      Renew Part: Driveshaft to rear differential bolts  Quantity: 6.

      Torque  : 75Nm

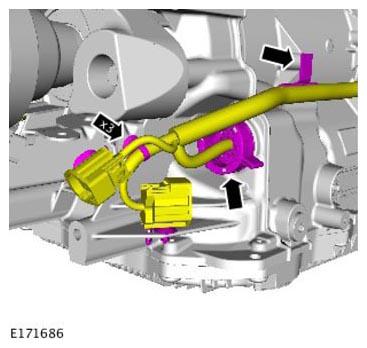

  16. G11313865Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • NOTE: Remove and discard the tie straps.

      Reposition the wiring harness to the correct location.

    • Connect the transmission electrical connector.
    • Install the 4 clips.

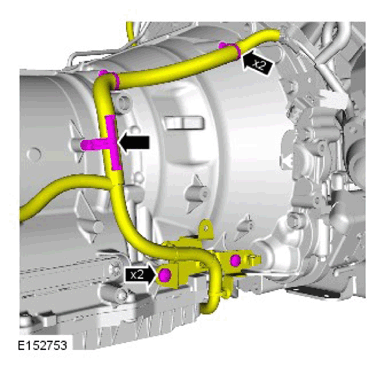

  17. G11298296Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the 3 clips.
    • Install and tighten the 2 bolts.

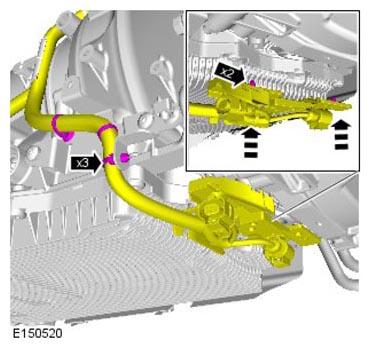

  18. G11292138Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Reposition the wiring harness to the correct location.
    • Install the 5 clips.

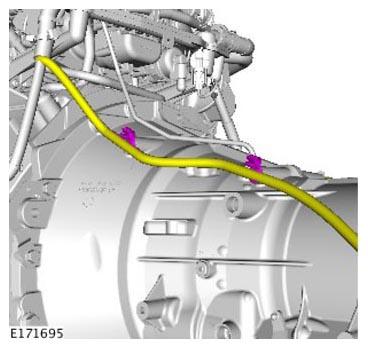

  19. NOTE: Remove and discard the tie straps.
    G11313862Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the 2 clips.

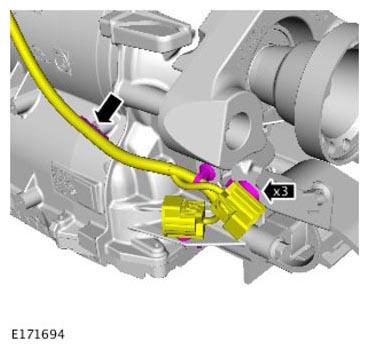

  20. G11313861Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the 4 clips.

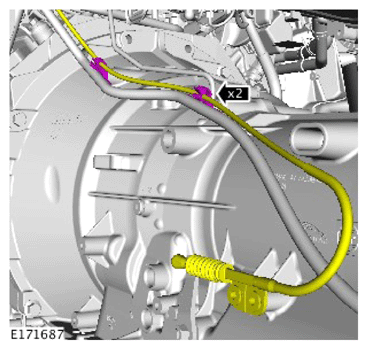

  21. NOTE: Remove and discard the tie straps.
    G14006217Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the cable into the 2 clips.

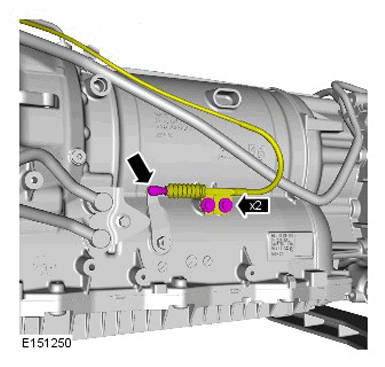

  22. G11284090Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the cable to the lever.
    • Install and tighten the 2 bolts.

      Torque  : 11Nm

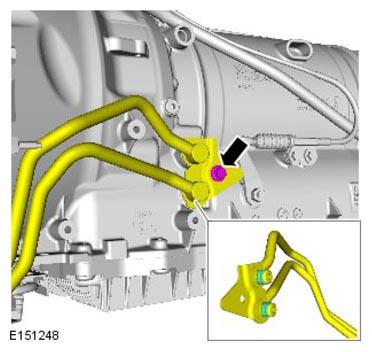

  23. G11291983Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install 2 new O-ring seals.

      Renew Part: Transmission casing O-ring seals  Quantity: 2.

    • Reposition the oil cooler pipes to the correct location.
    • Install the oil cooler pipes to the transmission.
    • Install and tighten the bolt.

      Torque  : 22Nm

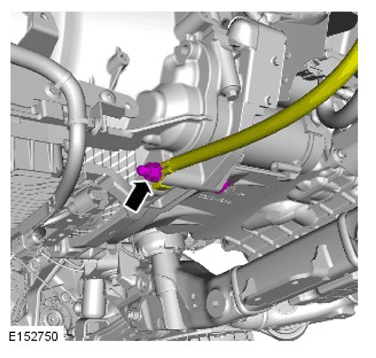

  24. G11298284Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Reposition the ground cable away from the transmission.
    • Install and tighten the nut and bolt.

      Torque  : 48Nm

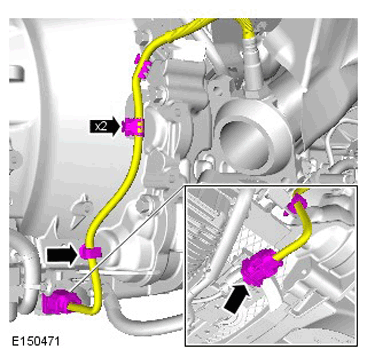

  25. G11286674Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the wiring harness into the 3 clips.
    • Connect the electrical connector.

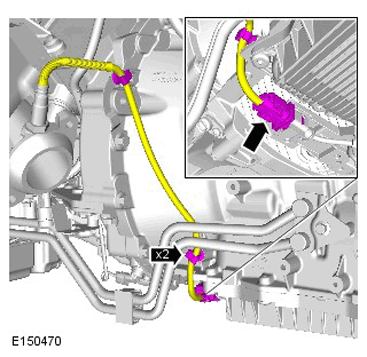

  26. G11286657Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the wiring harness into the 2 clips.
    • Connect the electrical connector.
  27. Install the exhaust system.

    Refer to: EXHAUST SYSTEM

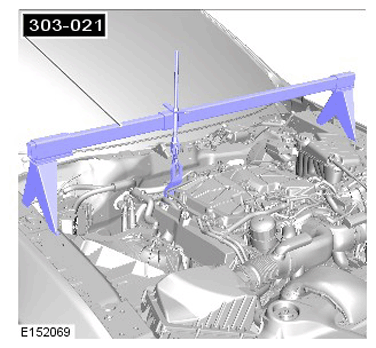

  28. G11287264Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the engine support bracket.

    Special Tool(s): 303-021

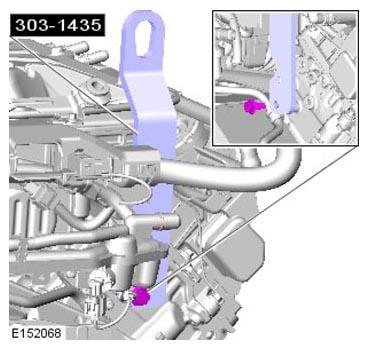

  29. G11292027Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the bolt.
    • Remove the special tool.

      Special Tool(s): 303-1435

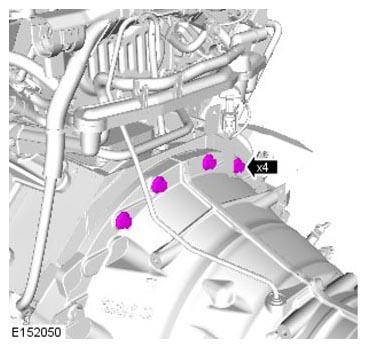

  30. G11292026Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the 4 bolts.

    Torque  : 48Nm

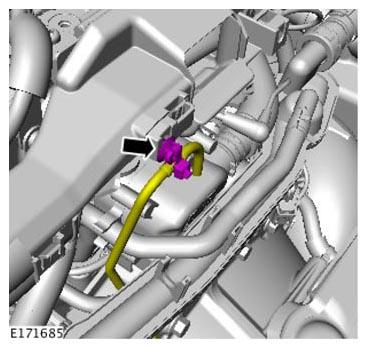

  31. G11313846Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Reposition the breather to the correct location.
    • Install the clip.
  32. Install the secondary bulkhead left panel.

    Refer to: SECONDARY BULKHEAD LEFT PANEL - V6 S/C 3.0L PETROL

  33. Install the engine cover.

    Refer to: ENGINE COVER - V6 S/C 3.0L PETROL

  34. Connect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  35. Check the transmission fluid level.

    Refer to: TRANSMISSION FLUID LEVEL CHECK

    • NOTE: Vehicles to the end of 17MY.

      If a new Transmission Assembly is installed. The Jaguar Land Rover approved diagnostic equipment must be used to calibrate the module.

    • NOTE: Vehicles from introduction of 18MY.

      If a new Transmission Assembly is installed. The Jaguar Land Rover approved diagnostic equipment must be used to calibrate the module.

    • Select 'Transmission Control Module [TCM]'
    • Select 'Replace ECU'
    • Follow all on-screen instructions to complete this task.
