Instrument Cluster Lens: Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
  2. Refer to: INSTRUMENT CLUSTER

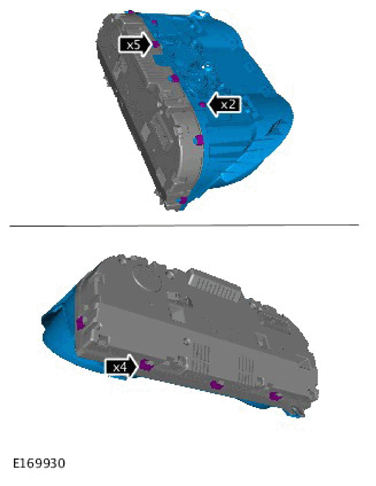

  3. CAUTION: Using a suitable plastic trim tool, release the clips.
    G11304282Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

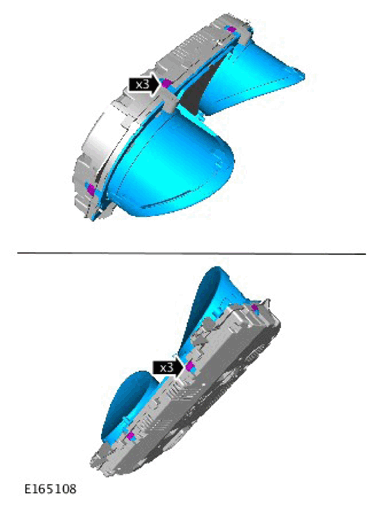

  4. CAUTION: Using a suitable plastic trim tool, release the clips.
    G11304283Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

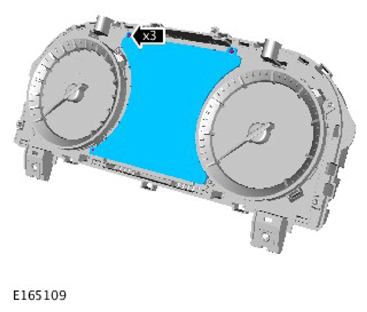

  5. G11304284Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

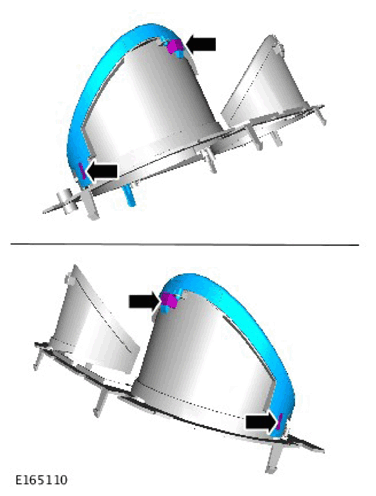

  6. CAUTION: Using a suitable plastic trim tool, release the clips.
    G11304285Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
