Control Diagram - 2 Of 2 - Head Up Display (HUD)
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

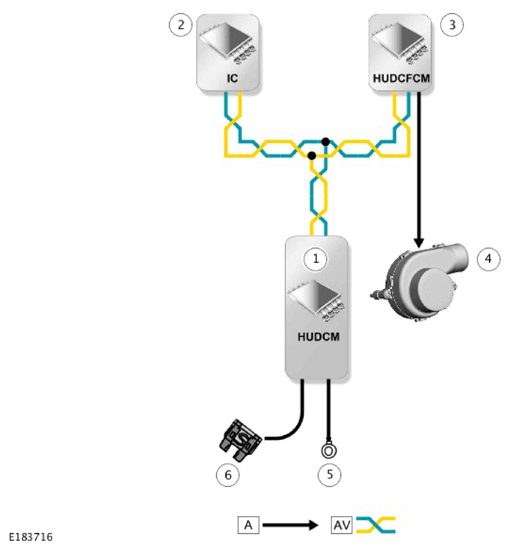

A = HARDWIRED; AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT SYSTEMS BUS.
| ITEM |
DESCRIPTION |
| 1 |
Head Up Display Control Module (HUDCM) |
| 2 |
Instrument Cluster (IC) |
| 3 |
Head Up Display Cooling Fan Control Module (HUDCFCM) |
| 4 |
Head Up Display (HUD) cooling fan |
| 5 |
Ground |
| 6 |
Power supply |
