Head Up Display - Zone Layout
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Not all the information below will be displayed at the same time, zone displays will be shown based on prioritization and/or boundary overlap.

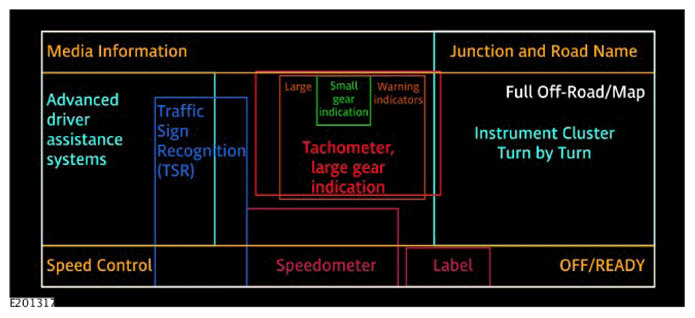

The following zones can be displayed in the Head Up Display (HUD):
- Speedometer zone - Vehicle speed value.
- Label zone - Speed units.
- Large warnings zone - Forward alert, driver intervene.
- Set speed information zone - Speed control, adaptive speed limiter.
- Junction and road name zone - Navigation next road name.
- Turn by turn zone - Navigation display, navigation video display.
- Traffic Sign Recognition (TSR) and TSR zone - Warning signs, vehicle speed units/value, overtake, speed text, sign type.
- Small gear display zone - Gear state.
- Tachometer and large gear display zone - Large gear position, gear upshift indicator.
- Full off road/map zone - Full screen.
When selected the HUD feature projects the following driver information display onto the inside of the windshield:

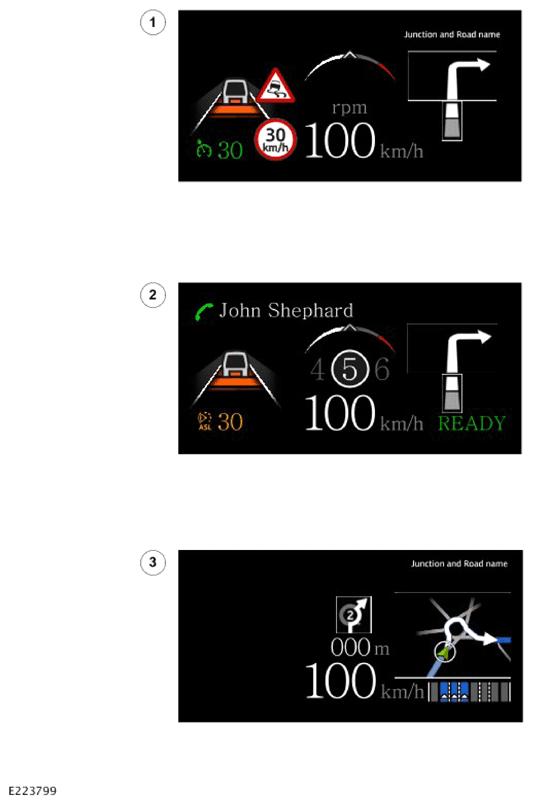

Head Up Display - Display Themes
| ITEM | DESCRIPTION |
|---|---|
| 1 | Adaptive speed limiter, Traffic Sign Recognition (TSR), vehicle speed, navigation |
| 2 | Speed limiter, vehicle speed, gear position |
| 3 | Junction and road name zone |
