Head Up Display - If Equipped

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

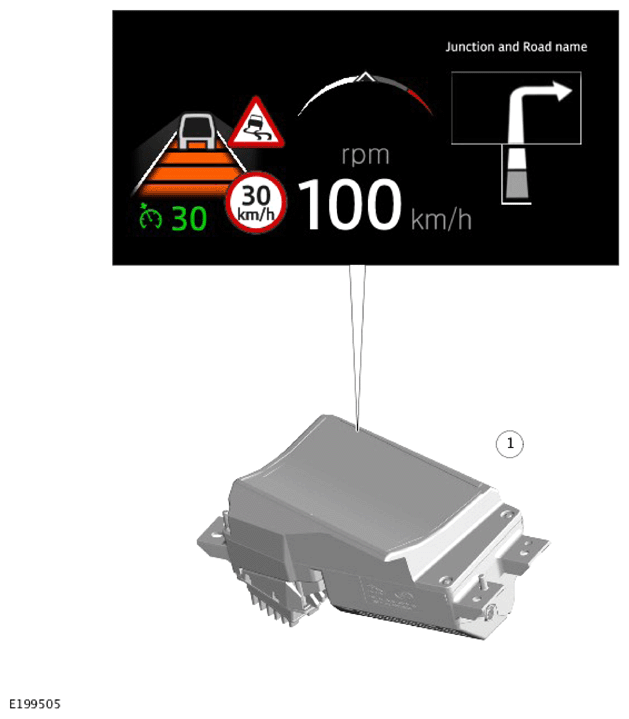

G13899370Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Head Up Display (HUD)

The Head Up Display (HUD) is located inside the instrument panel behind the Instrument Cluster (IC).

The HUD features a full color Thin Film Transistor (TFT) display which is video capable. This option requires the IC virtual display installed.
