Component Location

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

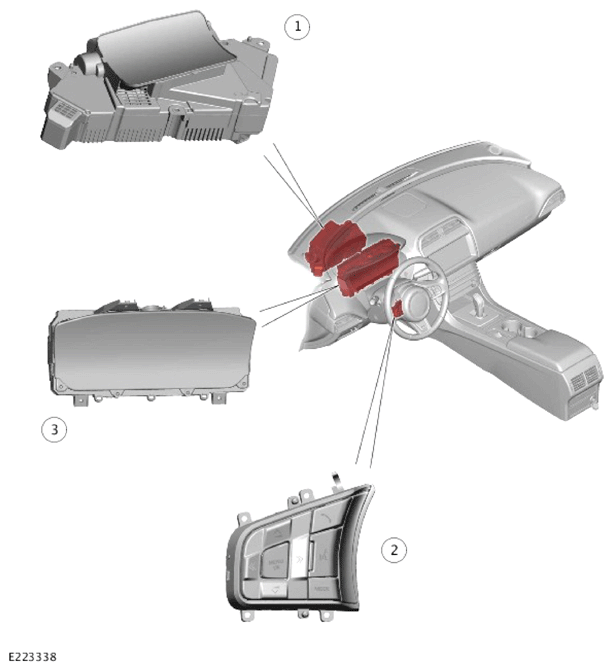

G14008455Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Head Up Display (HUD) (if equipped)
2 Left steering wheel switchpack
3 Instrument Cluster (IC) - Virtual display
