Section 220 (Automatic Transmission/Transaxle External Controls - Vehicles With: 8HP45 8-Speed Automatic Transmission AWD/8HP45 8-Speed Automatic Transmission RWD/8HP70 8 - Speed Automatic Transmission AWD -- XE/(760))
>>
Automatic Transmission/Transaxle External Controls - Vehicles With: 8HP45 8-Speed Automatic Transmission AWD/8HP45 8-Speed Automatic Transmission RWD/8HP70 8-Speed Automatic Transmission AWD (G1862976)
>>
Removal And Installation
>>
Upshift Paddle Switch (G1867748)
>>
Removal
Upshift Paddle Switch (G1867748): Removal
WARNING:
This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

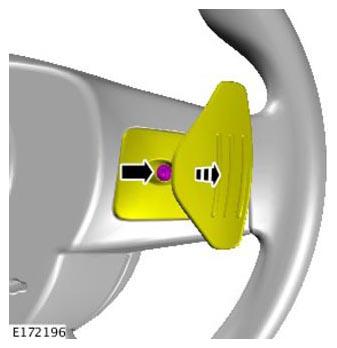

Release the upshift paddle switch.
Torque
:
2.5Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

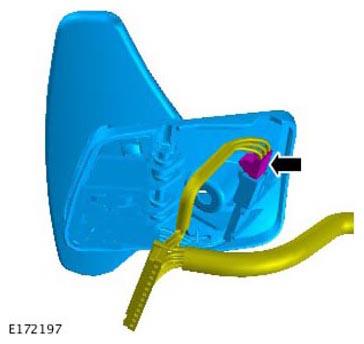

Disconnect the electrical connector.
