Transmission Control Switch Knob (G1859719): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.

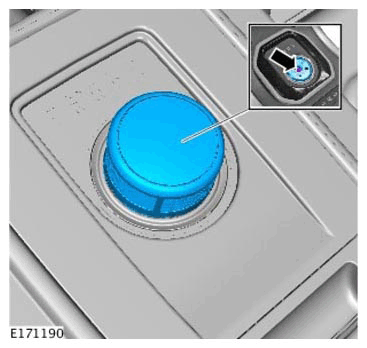

  1. CAUTION: Care must be taken to avoid damaging the surrounding components.
    G11314229Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
