Transmission Control Switch (G1859718): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  1. Refer to: FLOOR CONSOLE DOUBLE CUP HOLDER (G1851108)

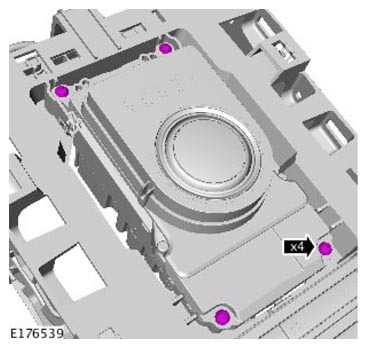

  2. G11314227Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

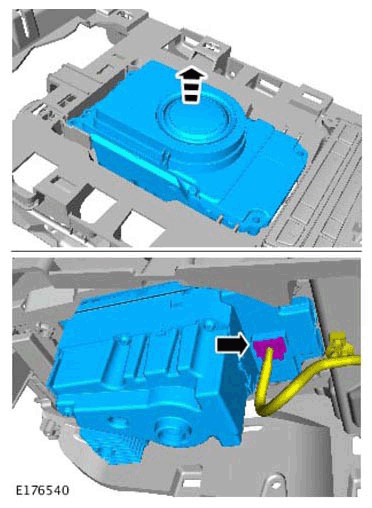

  3. G11314228Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
