Emergency Park Release Lever - INGENIUM I4 2.0L Petrol (G2028355): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

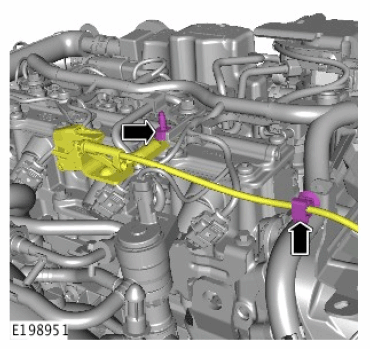

- Remove the nut.
- Remove the clip.
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the air deflector.
Refer to: ENGINE UNDERSHIELD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.

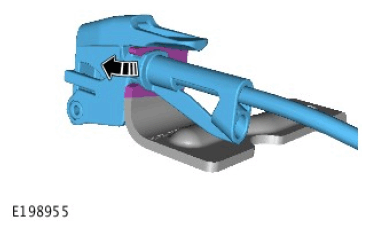

- Release the emergency release cable.
NOTE: If necessary, install new clips.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the emergency park position release lever.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the emergency park position release lever.
