Emergency Park Release Lever (G2248976): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD - PROJECT 8
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

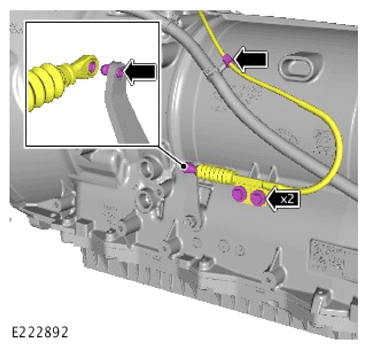

- Release the Emergency Park Release (EPR) lever from the transmission.
- Remove the 2 bolts.
- Release the EPR from the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

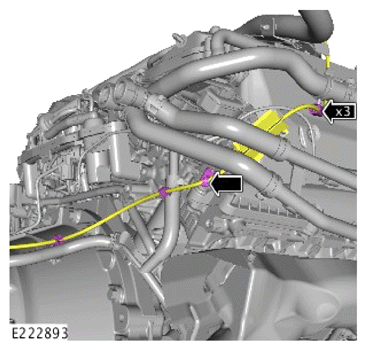

Release the EPR from the 4 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

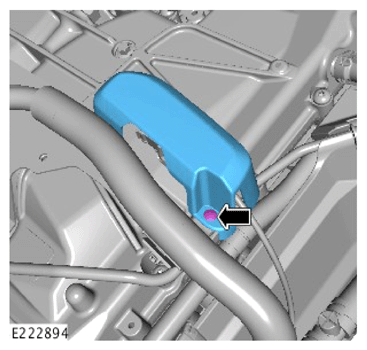

Remove EPR lever cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

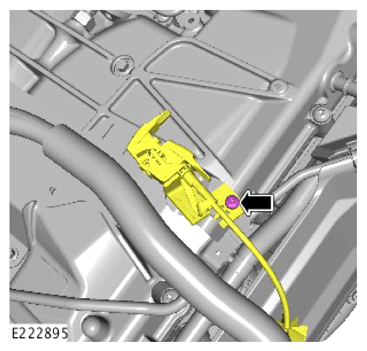

Remove the EPR bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

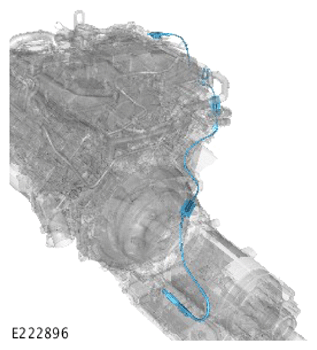

Remove the EPR lever.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

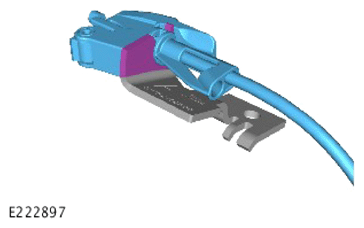

Remove the EPR from the bracket.
