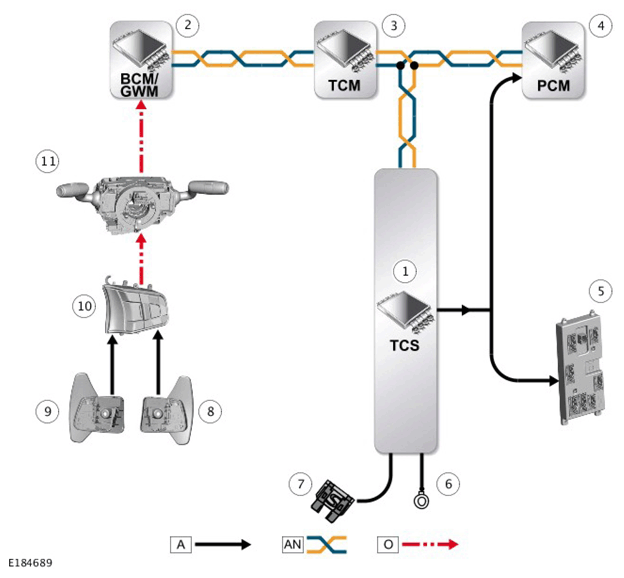

Control Diagram
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED; AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN SYSTEMS BUS; O = LOCAL INTERCONNECT NETWORK (LIN) BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Transmission Control Switch (TCS) |
| 2 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 3 | Transmission Control Module (TCM) |
| 4 | Powertrain Control Module (PCM) |
| 5 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 6 | Ground |
| 7 | Power supply |
| 8 | Paddle switch - upshift |
| 9 | Paddle switch - downshift |
| 10 | Right steering wheel switchpack |
| 11 | Steering Wheel Module (SWM) |
