Transmission Control Module And Main Control Valve Body - AWD (G1902035): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Be prepared to collect escaping fluid.

CAUTION: Make sure all suitable safety precautions are taken to protect the TCM and main control valve body electrical connector pins against electrostatic discharge.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Remove the transmission fluid pan.
Refer to: TRANSMISSION FLUID PAN, GASKET AND FILTER
CAUTION: Take precautions to avoid any electrostatic charging, which could damage this component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Make sure all suitable safety precautions are taken to protect the TCM and main control valve body electrical connector pins against electrostatic discharge.
- Take precautions to avoid any electrostatic charging, which could damage this component.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Take extra care not to damage the transmission housing, components and mating faces.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Use suitable equipment to support the transmission as illustrated.

General Equipment: Transmission jack
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 5 transmission crossmember to chassis bolts.
- Remove the transmission crossmember to transfer case mount bolt.
- Remove the transmission crossmember.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Note the orientation of the component prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s): JLR-308-844
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the transmission crossmember.
- Install and finger tighten the transmission crossmember to transfer case mount bolt.
- Install and tighten the 5 transmission crossmember to chassis bolts.
  Torque : 65Nm
- Fully tighten the transmission crossmember to transfer case mount bolt.
  Torque : 48Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the support equipment.

General Equipment: Transmission jack
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 8Nm
WARNING: Be prepared to collect escaping fluid.

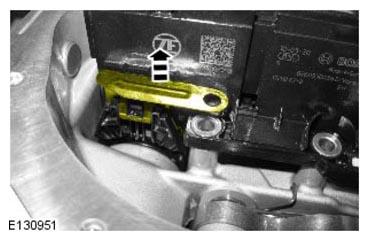

NOTE: Note the position of the manual park brake release.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
