Transmission Control Module And Main Control Valve Body - AWD (G1902035): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

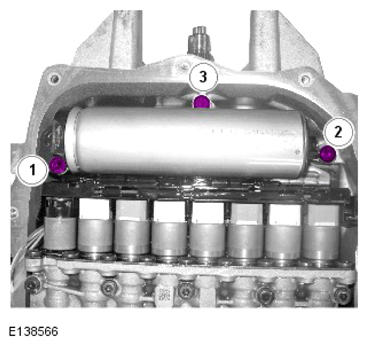

CAUTION: Make sure that pressure pipe (1) and pressure pipe (2) are installed correctly before installing the valve body assembly.

NOTE: Steps 1 and 2 are to be completed out together.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

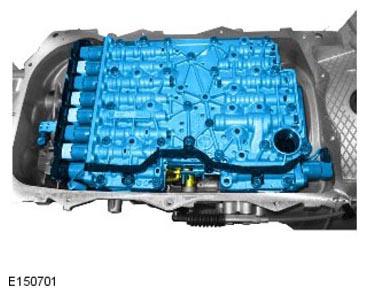

CAUTION: Care must be taken when refitting the valve body assembly.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Make sure that the component is installed to the noted removal position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Tighten the retaining bolts evenly and progressively.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Transmission control module and main control valve body bolts Quantity: 1 .

Torque : 8Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Take extra care not to damage the transmission housing, components and mating faces.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

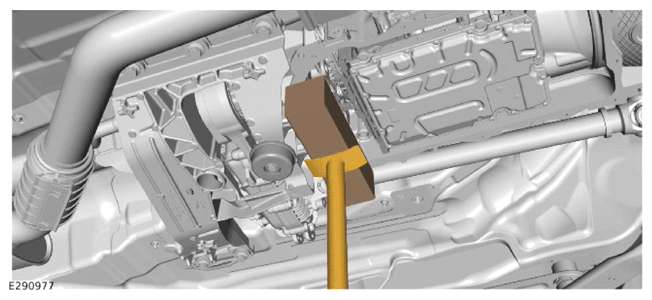

Use suitable equipment to support the transmission as illustrated.

General Equipment: Transmission jack
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

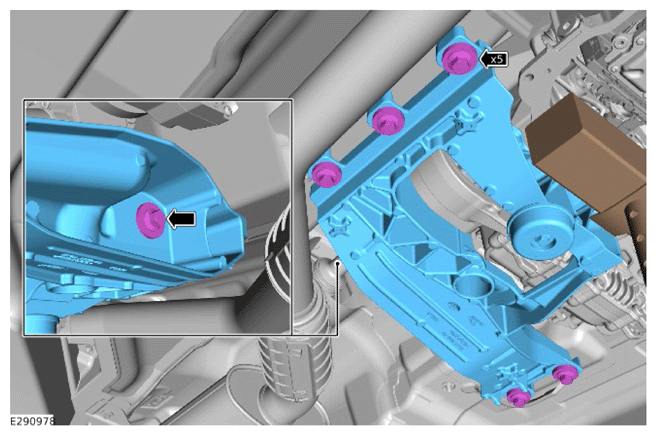

- Remove the 5 transmission crossmember to chassis bolts.
- Remove the transmission crossmember to transfer case mount bolt.
- Remove the transmission crossmember.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Special Tool(s): JLR-308-844
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

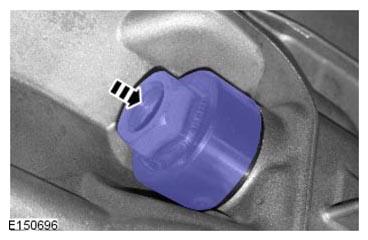

CAUTION: Make sure that the electrical connector is installed in the correct orientation as noted in the removal step.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 10Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the transmission crossmember.
- Install and finger tighten the transmission crossmember to transfer case mount bolt.
- Install and tighten the 5 transmission crossmember to chassis bolts.
  Torque : 65Nm
- Fully tighten the transmission crossmember to transfer case mount bolt.
  Torque : 48Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the support equipment.

General Equipment: Transmission jack
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Tighten the retaining bolts evenly and progressively.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 8Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Refer to: TRANSMISSION FLUID PAN, GASKET AND FILTER
Use the JLR approved diagnostic equipment and calibrate the main control valve body and the transmission control module (TCM).
General Equipment: Jaguar Land Rover approved diagnostic equipment
