Extension Housing Seal (G2374696): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
- Remove the transfer case.
Refer to: TRANSFER CASE
-
CAUTION: Care must be taken to avoid damage to the seal register and running surface.

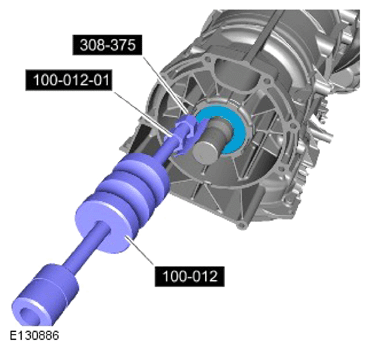

Use the special tools to remove and discard the extension housing seal.
Special Tool(s): 100-012 , 100-012-01 , 308-375
