Extension Housing Seal (G2374696): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure that the mating faces are clean and free of foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

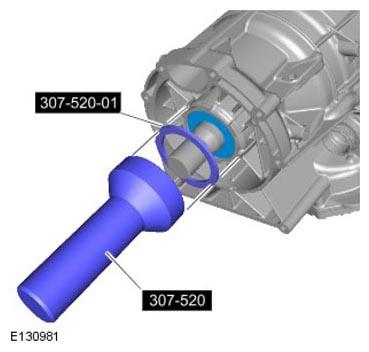

Use the special tools to install the new extension housing seal.

Special Tool(s): 307-520 , JLR-307-520-01

Renew Part: Extension housing seal Quantity: 1 .
Install the transfer case.
Refer to: TRANSFER CASE
Carry out a transmission fluid level check.
Refer to: TRANSMISSION FLUID LEVEL CHECK
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
