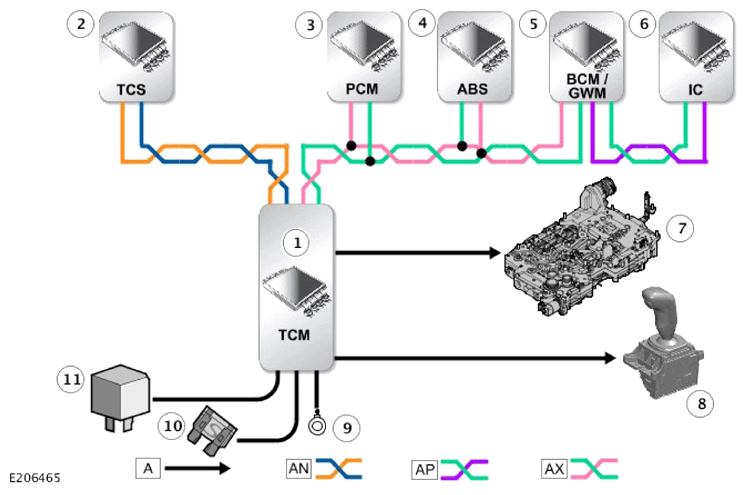

Control Diagram
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN SYSTEMS BUS: AP = HS CAN COMFORT SYSTEMS BUS: AX = FLEXRAY SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Transmission Control Module (TCM) |
| 2 | Transmission Control Switch (TCS) |
| 3 | Powertrain Control Module (PCM) |
| 4 | Anti-lock Brake System (ABS) control module |
| 5 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 6 | Instrument Cluster (IC) |
| 7 | Mechatronic valve block |
| 8 | Transmission Control Switch (TCS) |
| 9 | Ground |
| 10 | Permanent power supply from Engine Junction Box (EJB) |
| 11 | Power supply from ignition relay in EJB |
