Automatic Transmission ZF 8HP70
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

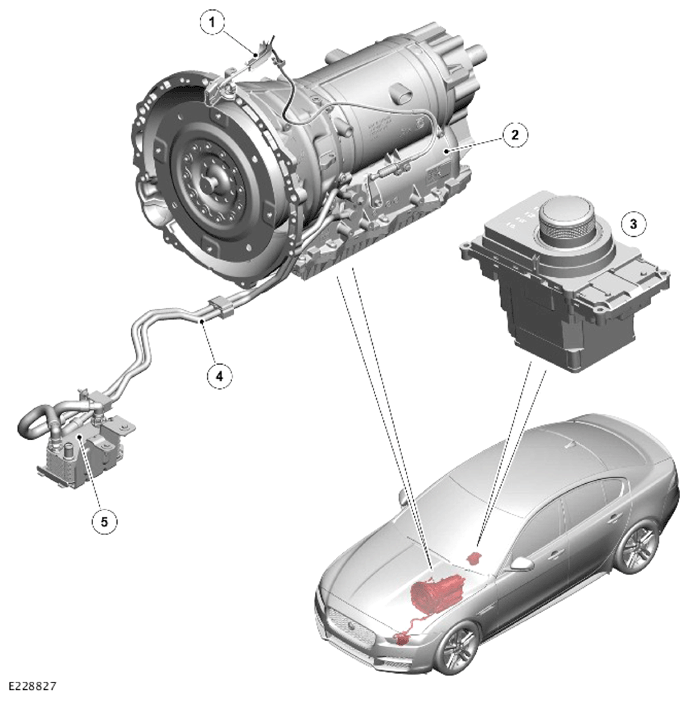

| ITEM |
DESCRIPTION |
| 1 |
Emergency Park Release (EPR) lever |
| 2 |
Automatic transmission |
| 3 |
Transmission Control Switch (TCS) |
| 4 |
Automatic Transmission Fluid (ATF) supply and return pipes |
| 5 |
ATF cooler |
