Torque Specifications

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Numbers with a green background are a single use component.

COMPONENT TORQUE LOCATION

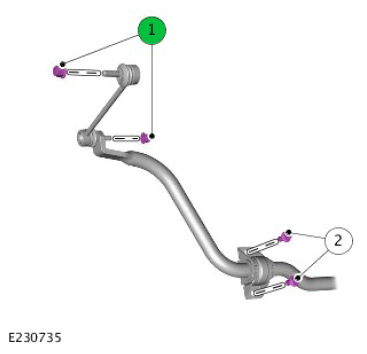

G12516431

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

COMPONENT TORQUE LOCATION

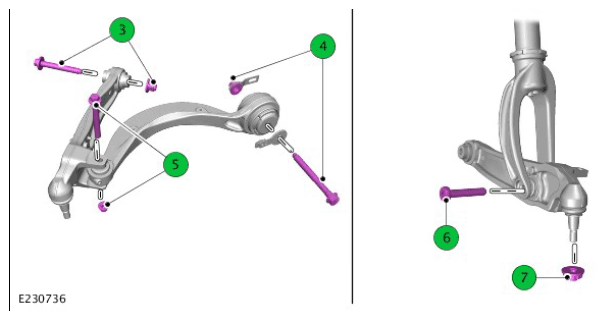

G12516432

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

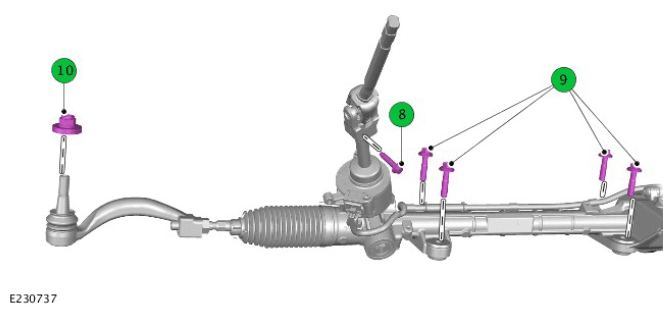

G12516433

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

COMPONENT TORQUE LOCATION

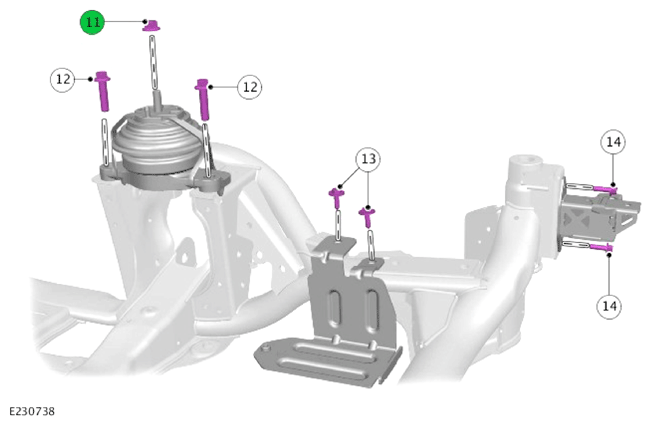

G14012151

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

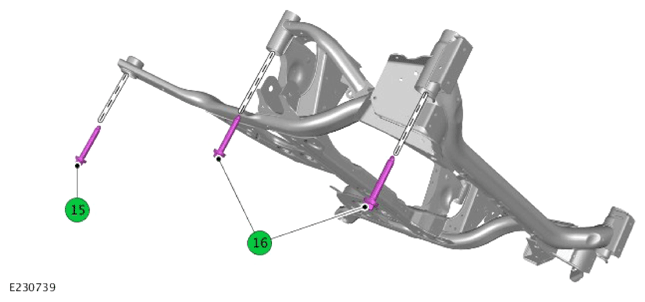

G14012152

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

COMPONENT TORQUE LOCATION

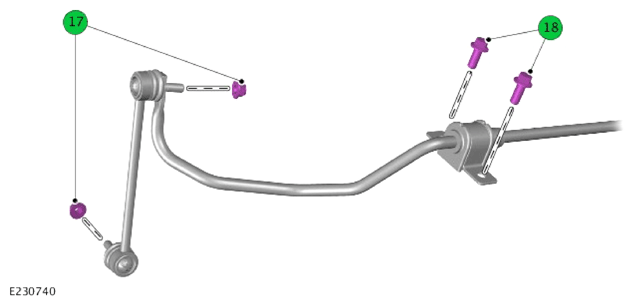

G14012153

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

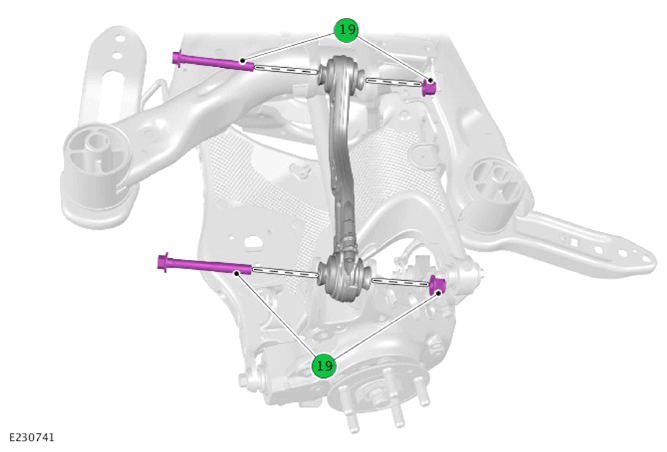

G14012154

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

COMPONENT TORQUE LOCATION

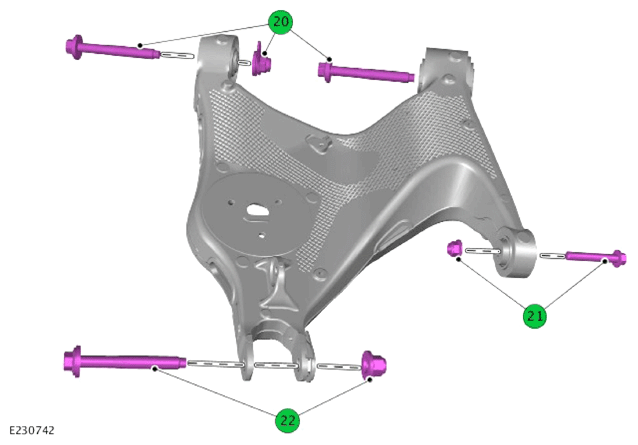

G14012155

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

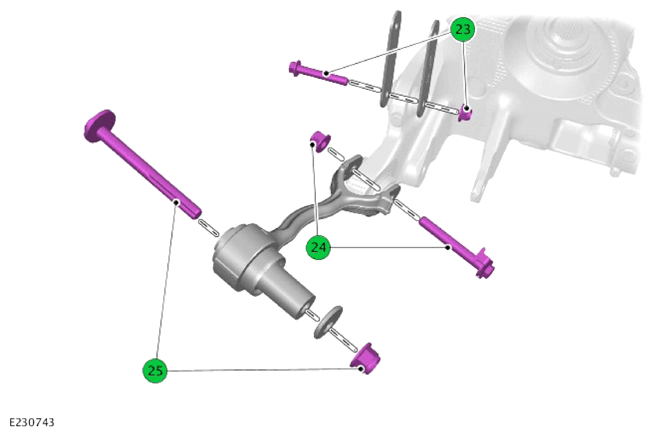

G14012156

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

COMPONENT TORQUE LOCATION

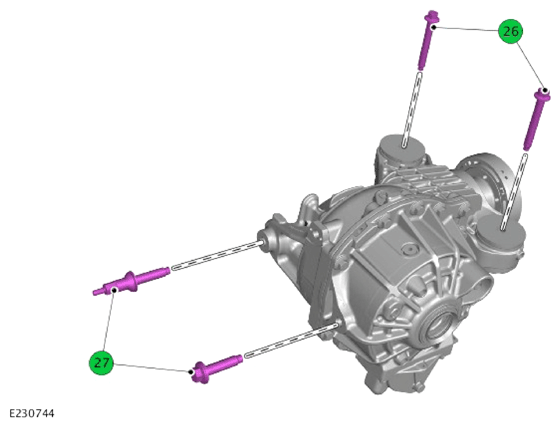

G14012157

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

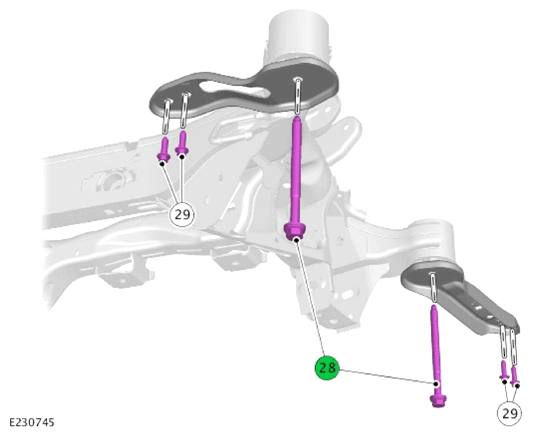

G14012158

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM			LB-FT			LB-IN
1	Front stabilizer bar bolts	60			44			-
2	Front stabilizer bar link nuts	60			44			-
3	Front lower control arm to the subframe nut and bolt	Stage 1 - 100 Nm		Stage 2 - 180 Degrees	Stage 1 - 74 lb-ft		Stage 2 - 180 Degrees	-
4	Front lower control arm to the subframe nut and bolt	Stage 1 - 100 Nm		Stage 2 - 180 Degrees	Stage 1 - 74 lb-ft		Stage 2 - 180 Degrees	-
5	Front lower control arm connection nut and bolt	Stage 1 - 60 Nm		Stage 2 - 135 Degrees	Stage 1 - 44 lb-ft		Stage 2 - 135 Degrees	-
6	Front shock absorber to the lower control arm bolt	Stage 1 - 60 Nm		Stage 2 - 120 Degrees	Stage 1 - 44 lb-ft		Stage 2 - 120 Degrees	-
7	Front lower control arm to the wheel knuckle nut	Stage 1 - 90 Nm		Stage 2 - 90 Degrees	Stage 1 - 66 lb-ft		Stage 2 - 90 Degrees	-
8	Steering column lower shaft bolt	30			22			-
9	Steering gear bolts	Stage 1 - 30 Nm		Stage 2 - 60 Degrees	Stage 1 - 22 lb-ft		Stage 2 - 60 Degrees	-
10	Outer tie-rod end nut	133			98			-
11	Engine mount to engine bracket nuts	60			44			-
12	Engine mount bolts	47			34			-
13	Transmission oil cooler bracket bolts	9			-			80
14	Cooling module mounting brackets bolts	9			-			80
15	Front subframe rear bolts	Stage 1 - 100 Nm		Stage 2 - 60 Degrees	Stage 1 - 74 lb-ft		Stage 2 - 60 Degrees	-
16	Front subframe center, front bolts	Stage 1 - 110 Nm		Stage 2 - 180 Degrees	Stage 1 - 81 lb-ft		Stage 2 - 180 Degrees	-
17	Rear stabilizer bar link nuts	60			44			-
18	Rear stabilizer bar bolts	60			44			-
19	Rear upper control arm nuts and bolts	Stage 1 - 60 Nm		Stage 2 - 60 Degrees	Stage 1 - 44 lb-ft		Stage 2 - 60 Degrees	-
20	Rear lower control arm to the subframe nuts and bolts	Stage 1 - 70 Nm		Stage 2 - 240 Degrees	Stage 1 - 52 lb-ft		Stage 2 - 240 Degrees	-
21	Rear lower control arm link nuts and bolts	Stage 1 - 48 Nm		Stage 2 - 60 Degrees	Stage 1 - 35 lb-ft		Stage 2 - 60 Degrees	-
22	Rear lower control arm to wheel knuckle nut and bolt	Stage 1 - 110 Nm		Stage 2 - 60 Degrees	Stage 1 - 81 lb-ft		Stage 2 - 60 Degrees	-
23	Rear lower control arm link nuts and bolts	Stage 1 - 48 Nm		Stage 2 - 60 Degrees	Stage 1 - 35 lb-ft		Stage 2 - 60 Degrees	-
24	Rear tie-rod to the wheel knuckle nut and bolt	Stage 1 - 60 Nm		Stage 2 - 60 Degrees	Stage 1 - 44 lb-ft		Stage 2 - 60 Degrees	-
25	Rear tie-rod to the subframe nut and bolt	Stage 1 - 80 Nm		Stage 2 - 60 Degrees	Stage 1 - 60 lb-ft		Stage 2 - 60 Degrees	-
26	Rear differential mounting bolts	110			81			-
27	Rear differential mounting bolts	192			141			-
28	Rear subframe mounting bolts	Stage 1 - 110 Nm	Stage 2 - 180 Degrees	-	Stage 1 - 81 lb-ft	Stage 2 - 180 Degrees	-	-
29	Rear subframe bracket mounting bolts	60			44			-
